National Instruments · PCI

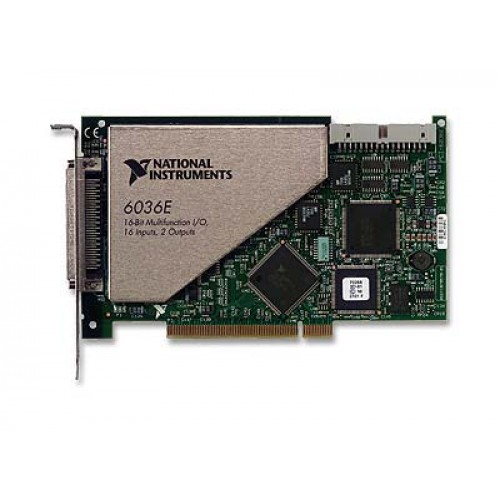

NI PCI-6036E (Legacy)

The NI PCI-6036E is a legacy PCI multifunction DAQ card with 16-bit analog input at up to 200 kS/s, two analog outputs, eight digital I/O lines, and two counters/timers.

ManufacturerNational Instruments

ModelPCI-6036E

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6036E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfacePCI

Analog input16 channels, 16-bit, up to 200 kS/s

Analog output2 channels, 16-bit

Digital I/O8 lines

Counters/timers2 counters, 24-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6036E combines analog acquisition, voltage output, digital I/O, and counter/timer functions on a PCI card. NI documents it alongside the PCI-6034E and PCI-6035E in the same specifications family.

NI identifies laboratory automation, research, design verification, and manufacturing test as application areas. Its PCI-6036 product page also describes adding sensor and high-voltage measurement capability through SCC or SCXI signal conditioning.

Software-selectable analog input configuration: 16 single-ended or 8 differential channels.
Selectable bipolar input ranges from ±50 mV to ±10 V.
Two 16-bit analog outputs for voltage generation.
Eight digital I/O lines and two 24-bit counters/timers.

Verified specifications

Technical data

Verified product specifications.

Analog input configuration	16 single-ended or 8 differential channels
Analog input resolution	16 bit
Maximum analog input sampling rate	200 kS/s
Analog input ranges	±10 V, ±5 V, ±500 mV, ±50 mV
Analog input FIFO	512 samples
Analog output channels	2 channels
Analog output resolution	16 bit
Analog output range	±10 V
Digital I/O lines	8 lines
Counter/timer configuration	2 counters, 24-bit

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host interface

PCI-6036E

Multifunction DAQ card

Signal conditioning

NI describes SCC and SCXI signal conditioning options for the PCI-6036.

Confirm the exact host, driver version, operating system, and signal-conditioning configuration before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6034E/6035E/6036E Family SpecificationsSpecifications And Pinouts · download.ni.com

Open →

NI PCI-6036 Product PageManufacturer Product Page · ni.com

Open →

NI-DAQmx 8.3 ReadmeHistorical Driver Support Reference · download.ni.com

Open →

PCI-6036E Specifications and I/O PinoutsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many differential analog inputs does the PCI-6036E provide?

It provides 8 differential inputs, or 16 single-ended inputs, with software-selectable configuration.

Does the PCI-6036E include analog outputs?

Yes. It has two 16-bit voltage outputs with a ±10 V range.

Is the PCI-6036E listed in historical NI-DAQmx support documentation?

Yes. NI lists the PCI-6036E in the NI-DAQmx 8.3 readme. This historical listing does not establish support in current driver releases or operating systems.
