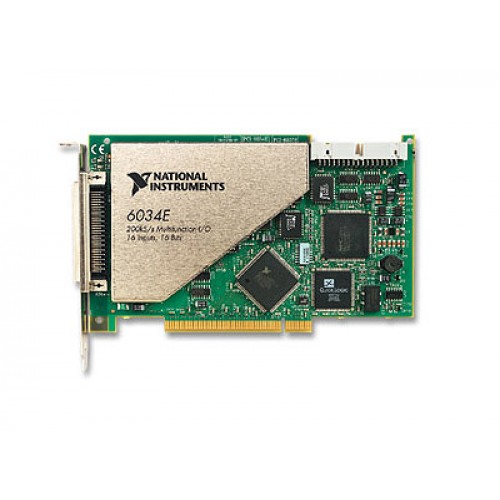

National Instruments PCI-6034E (Legacy) Multifunction data acquisition card
1 image: Click to enlarge
National Instruments · PCI

NI PCI-6034E (Legacy)

The NI PCI-6034E is a legacy PCI data acquisition card with 16-bit analog input at up to 200 kS/s, eight digital I/O lines and two counter/timers.

ManufacturerNational Instruments
ModelPCI-6034E (Legacy)
Part Number778075-01 · 186169-02
Product TypeMultifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6034E (Legacy)

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCI
Analog inputs16 single-ended or 8 differential
ADC resolution16-bit
Maximum sampling rate200 kS/s
Digital I/O8 lines
CountersTwo 24-bit counter/timers
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6034E combines analog acquisition, digital I/O and counting functions on a PCI card. NI identifies laboratory automation, research, design verification and manufacturing test as application areas.

Unlike the PCI-6035E and PCI-6036E covered by the same family specifications, the PCI-6034E has no analog output channels.

  • Software-selectable single-ended or differential analog input configuration.
  • Four bipolar input ranges: ±10 V, ±5 V, ±500 mV and ±50 mV.
  • Digital I/O compatible with 5 V TTL/CMOS.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration16 single-ended or 8 differential channels
Analog input resolution16 bits
Maximum analog input sampling rate200 kS/s
Bipolar input ranges±10 V; ±5 V; ±500 mV; ±50 mV
Analog input FIFO512 samples
Digital I/O lines8 lines
Counter/timers2
Counter/timer resolution24 bits
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host interface

PCI-6034E

Multifunction DAQ card

Signal conditioning

NI identifies SCC and SCXI modules as options for adding sensor and high-voltage measurement capability.

Confirm the host PCI interface, driver version, operating system and signal-conditioning configuration before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6034E Product PageProduct Page · ni.com
Open →
NI 6034E/6035E/6036E Family SpecificationsSpecifications PDF · download.ni.com
Open →
NI-DAQ 7.4 ReadmeHistorical Driver Documentation · download.ni.com
Open →
NI-DAQmx 8.5 Readme and Supported DevicesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI PCI-6035E (Legacy)View product →
Related model
NI PCI-6036E (Legacy)View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PCI-6034E provide analog outputs?

No. The family specifications restrict analog outputs to the 6035E and 6036E models.

How many differential analog inputs does it support?

It supports eight differential inputs, or 16 single-ended inputs.

Is there documented NI-DAQmx support?

Yes. NI-DAQmx 8.5 documentation lists the PCI-6034E. This historical listing does not establish support for current driver releases or operating systems.
