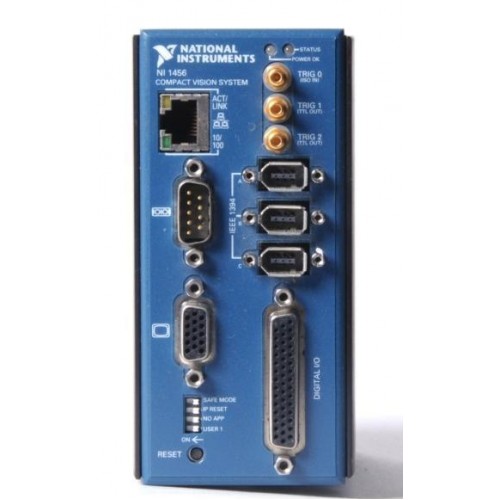

The NI CVS-1456 is a real-time compact vision system for acquiring, processing, and displaying images from compatible IEEE 1394 cameras.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The CVS-1456 belongs to the CVS-1450 Series, combining embedded image processing with Ethernet connectivity and VGA display output.
Software version selection is important: NI identifies Vision Acquisition Software February 2013 as the last release supporting this model. NI also states that LabVIEW 2013 and later do not support it, even when it appears as a selectable real-time target.
Verified product specifications.
| Processor | Intel Celeron, 733 MHz |
|---|---|
| SDRAM | 128 MB |
| Nonvolatile storage | 256 MB |
| Main supply | 24 ±10% VDC |
| Camera interface | 3 ports, IEEE 1394a |
| Camera bus speeds | 100, 200, 400 Mbps |
| IEEE 1394 bus power | 18 maximum, shared across all three ports W |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Compact vision family
Embedded imaging system
Vision Acquisition Software February 2013 was the final supporting release.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI states that LabVIEW 2013 and later do not support the CVS-1456, although the device may still appear as a usable real-time target in the project interface.
NI identifies the February 2013 release as the last version supporting the CVS-1454, CVS-1455, and CVS-1456.
No. The NI CVS I/O Accessory user manual explicitly excludes the CVS-1456, CVS-1454, and CVS-1455.
