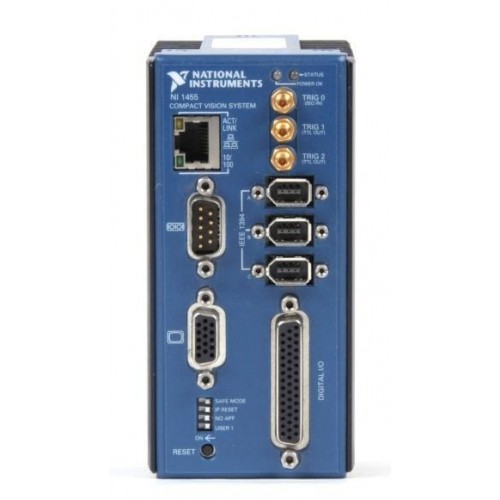

The NI CVS-1455 is a CVS-1450 Series real-time imaging system for acquiring, processing, and displaying images from compatible IEEE 1394 cameras.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Ethernet connects the system to a development computer; VGA provides a monitor connection.
Software version selection is important: NI identifies Vision Acquisition Software February 2013 as the last release supporting the CVS-1455. NI also states that LabVIEW 2013 and later do not support this target, even when it appears in Project Explorer.
Verified product specifications.
| Processor | Intel Celeron, 650 MHz |
|---|---|
| SDRAM | 128 MB |
| Nonvolatile storage | 128 MB |
| Camera interface | 3 IEEE 1394a ports |
| Main supply | 24 ±10% VDC |
| Camera bus power | 18 maximum, shared across all three ports W |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Compact vision platform
Imaging system
Vision Acquisition Software February 2013 was the last release supporting the CVS-1455; later software features do not work on this device.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
IEEE 1394 cameras conforming to IIDC Digital Camera Specification Version 1.30.
No. NI states that LabVIEW 2013 and later do not support the CVS-1455, although Project Explorer may display it as a usable real-time target.
NI documents image and data logging to an FTP server or local drive using Vision Builder for Automated Inspection, and explicitly lists the CVS-1455 among the applicable hardware.
