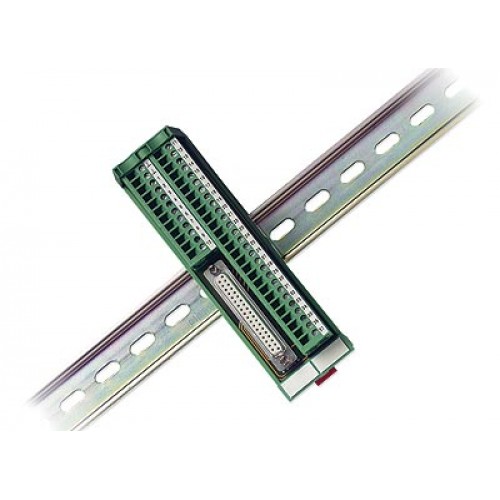

National Instruments CB-37FV DIN rail terminal block
1 image: Click to enlarge
National Instruments · NI DAQ connectivity accessories

NI CB-37FV

The NI CB-37FV is a 37-pin female D-SUB terminal block for vertical DIN rail mounting. NI lists screw-terminal and spring-terminal versions, so the part number determines the field-wiring connection.

ManufacturerNational Instruments
ModelCB-37FV
Part Number778672-01 · 778685-01
Product TypeDIN rail terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CB-37FV

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Device-side interface37-pin female D-SUB
Mounting orientationPerpendicular to the DIN rail
Screw-terminal version778672-01
Spring-terminal version778685-01
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The CB-37FV provides a terminal-block connection point for supported NI DAQ systems using 37-position D-SUB cabling. NI identifies the FV mounting arrangement as perpendicular to the DIN rail, in contrast to the inline arrangement of the CB-37FH.

Select the terminal style by part number and check the device-specific cable guidance before planning the connection. NI supplies separate dimensional drawings and CAD models for both CB-37FV part numbers.

  • 37-position D-SUB connectivity for supported NI DAQ accessories and cables.
  • Vertical DIN rail installation with the block oriented perpendicular to the rail.
  • Part-number-specific screw-terminal and spring-terminal wiring options.
  • Official 2D drawings and 3D CAD models for mechanical planning.
Verified specifications

Technical data

Verified product specifications.

Back-end connector37-pin female D-SUB
MountingVertical DIN rail; perpendicular to rail
Terminal connection — 778672-0137-pin female screw terminal
Terminal connection — 778685-0137-pin female spring terminal
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ connectivity

Device-specific cables and terminal-block accessories

CB-37FV

37-pin vertical DIN rail terminal block

Mechanical distinction

FV mounts perpendicular to the DIN rail; FH mounts inline with the rail.

Confirm the actual part number, device pinout, and recommended cable; the model name alone does not identify the terminal style.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI CB-37FV Product and Part-Number DetailsOfficial Product Page · ni.com
Open →
CB-37FV Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
NI DAQ Multifunction I/O Cable and Accessory Compatibility GuideAccessory Compatibility Guide · ni.com
Open →
NI M Series User Manual — 37-Pin Cables and AccessoriesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CB-37FHView product →
Related model
CB-37F-LPView product →

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does every CB-37FV use screw terminals?

No. NI identifies 778672-01 as the screw-terminal version and 778685-01 as the spring-terminal version. Confirm the part number on the unit.

How does CB-37FV mounting differ from CB-37FH mounting?

The CB-37FV mounts perpendicular to the DIN rail. The CB-37FH mounts inline or horizontally with the rail.
