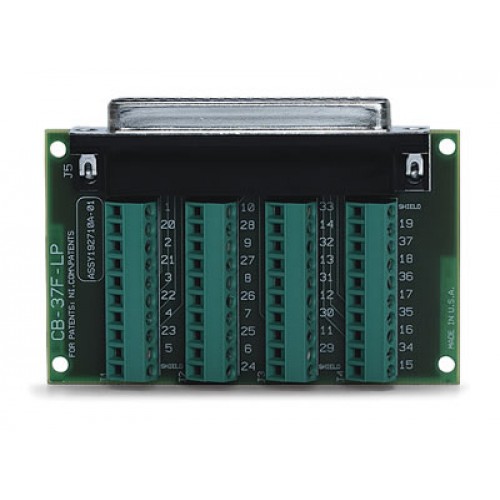

National Instruments CB-37F-LP Unshielded screw-terminal connector block

1 image: Click to enlarge

National Instruments · NI DAQ connectivity accessories

NI CB-37F-LP

The NI CB-37F-LP is an unshielded connector block that provides screw-terminal access to supported NI DAQ devices with 37-pin connectors. It can mount directly to the device or connect through a cable.

ManufacturerNational Instruments

ModelCB-37F-LP

Part Number779353-01

Product TypeUnshielded screw-terminal connector block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CB-37F-LP

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

NI part number779353-01

Device connection37-pin female D-Sub

Field wiring40 screw terminals

ConstructionUnshielded

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This connector block provides an accessible wiring interface between external signals and a supported NI DAQ device. Its female D-Sub connection supports direct attachment or cable-connected placement.

Signal assignments depend on the connected device; use that device's documentation when wiring the numbered terminals.

37-pin female D-Sub device interface.
Unshielded screw-terminal breakout construction.
Direct-mount and cable-connected configurations.
Three shield terminals in addition to the 37 signal-pin terminals.

Verified specifications

Technical data

Verified product specifications.

I/O connector	37-pin female D-Sub
Screw terminals	40
Shielding	Unshielded
Dimensions	5.733 × 8.113 × 1.417 cm
Terminal type	Angled entry, 3.91 mm pitch
Operating temperature	0 to 55 °C
Storage temperature	-20 to 70 °C
Relative humidity	10 to 90, noncondensing %
Use environment	Indoor only

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ 37-pin connectivity

Device interface

CB-37F-LP

Screw-terminal breakout

Mounting

Direct device connection or cable connection; standoff mounting listed by NI.

Not designed for input voltages above 42 Vpk, even with an external voltage divider. Follow the connected device's limits.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI CB-37F-LP Product PageProduct Page · ni.com

NI CB-37F-LP Installation GuideInstallation Guide · download.ni.com

CB-37F-LP Product CertificationsCertification Resource · ni.com

NI DAQ Accessory Terminology, Wiring and Connectivity GuideTechnical resource

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the CB-37F-LP require a cable?

No. It supports direct mounting to a supported device. For remote placement, the installation guide describes using an SH37F-37M cable.

Are all 40 terminals separate DAQ channels?

No. There are 37 connector-pin terminals and three shield terminals; channel functions depend on the connected device.

Is the CB-37F-LP shielded?

No. NI identifies this model as an unshielded connector block.
