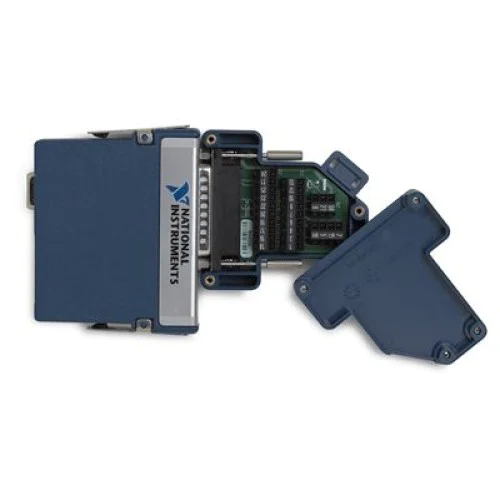

National Instruments NI 9924 25-pin D-SUB to screw-terminal connector block

1 image: Click to enlarge

National Instruments · NI C Series

NI 9924

The NI 9924 is a front-mount connector block that provides screw-terminal wiring for C Series modules with 25-pin D-SUB connectors. It is a connection accessory, not a standalone data acquisition system.

ManufacturerNational Instruments

ModelNI 9924

Part Number781922-01

Product Type25-pin D-SUB to screw-terminal connector block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI 9924

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Part number781922-01

Module connection25-pin female D-SUB

Field wiringScrew terminals for 16–26 AWG copper wire

Maximum voltage30 Vrms / 42 Vpk / 60 VDC

Operating temperature−40 to 70 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI 9924 connects a compatible C Series module to external circuitry through screw-terminal wiring. Its female 25-pin D-SUB connector mounts directly to the module and is secured with jackscrews.

NI lists the NI 9924 as a recommended front-mount terminal block for the 25-pin D-SUB versions of the NI 9201, NI 9221, NI 9401, NI 9421, NI 9472 and NI 9475. Verify the module connector variant before selecting the accessory.

25-pin female D-SUB connection with screw-terminal access for external wiring.
SH terminal for terminating wire or cable shields.
Strain-relief holes allow wiring to be secured with a zip tie.
Jackscrew attachment secures the connector block to the module.

Verified specifications

Technical data

Verified product specifications.

Back-end connection	25-pin female D-SUB
Front-end connection	25-position female screw terminal
Maximum voltage	30 Vrms / 42 Vpk / 60 VDC
Maximum current rating	≤1 A per channel
Operating temperature	−40 to 70 °C
Screw-terminal wire size	16–26 AWG copper conductor
Wire insulation strip length	4.5 mm
Maximum screw-terminal torque	0.4 N·m
Weight	65 g
Required cabling clearance	76.2 mm

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

C Series 25-pin D-SUB modules

Module interface served by the accessory

NI 9924

Front-mount screw-terminal connection accessory

Connection role

Provides screw-terminal wiring between a compatible C Series module and external circuitry.

Check the module connector variant and module safety instructions. Do not exceed 30 Vrms, 42 Vpk or 60 VDC.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9924 Official Product PageProduct Page · ni.com

NI 9924 User Guide and SpecificationsUser Guide And Specifications · download.ni.com

NI-9924 Dimensional DrawingsDimensional Drawings And CAD · ni.com

NI-9924 Product CertificationsProduct Certifications · ni.com

C Series with D-Sub Terminal: I/O Cable & Accessory GuideTechnical resource

Cabling Clearances for C Series ModulesTechnical resource

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Explore equipment

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the NI 9924 a PXI Express data acquisition module?

No. The NI 9924 is a 25-pin D-SUB to screw-terminal connector block for C Series modules, not a PXI Express acquisition module.

Can the NI 9924 be used with the NI 9201 or NI 9221?

Yes. NI recommends it for the 25-pin D-SUB versions of both modules. Confirm that your module has that connector variant.

What wire size does the NI 9924 accept?

The guide specifies 16–26 AWG copper conductor wire, with 4.5 mm of insulation removed and a maximum terminal tightening torque of 0.4 N·m.

Ask SOHO AssistantProduct & compatibility help
