NI 9923

The NI 9923 is a front-mount screw-terminal block for C Series modules with 37-pin D-SUB connectors. It provides a wiring connection accessory rather than a standalone data acquisition module.

ManufacturerNational Instruments

ModelNI 9923

Part Number781503-01

Product Type37-pin D-SUB to screw-terminal connector block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI 9923

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product roleC Series front-mount terminal block

Manufacturer part number781503-01

Module-side connection37-pin female D-SUB

Field wiring connection37-position screw terminal

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

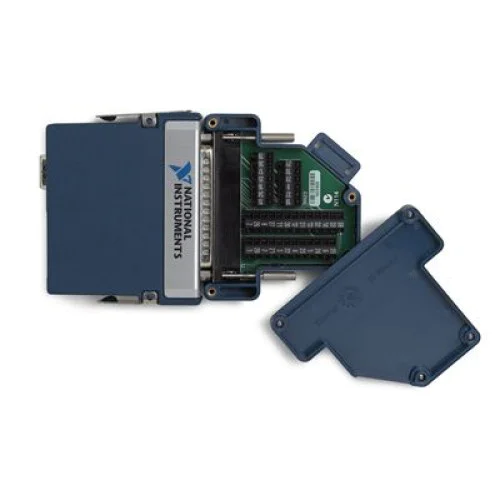

The NI 9923 connects field wiring to supported C Series modules through a front-mounted terminal block. Its screw-terminal front end connects to a 37-pin female D-SUB back end.

NI lists the NI 9923 as a recommended front-mount accessory for the 37-pin D-SUB versions of modules including the NI 9205 and NI 9207. Select accessories by the module's actual connector variant, not by model name alone.

Front-mount connection for supported 37-pin D-SUB C Series modules.
Screw-terminal wiring interface.
SH terminal for cable shields.
Strain-relief holes and securing jackscrews.

Verified specifications

Technical data

Verified product specifications.

Back-end connection	37-pin female D-SUB
Front-end connection	37-position female screw terminal
Maximum voltage	30 Vrms / 42 Vpk / 60 VDC
Operating temperature	-40 to 70 °C
Wire size	16–26 AWG copper
Wire strip length	4.5 mm
Maximum screw-terminal torque	0.4 N·m
Weight	82 g
Current limit: pins 9, 10, 19, 28, 29	≤5 A at -40 to 55 °C; ≤4 A at 56 to 70 °C
Current limit: remaining pins	≤1 A at -40 to 55 °C; ≤1 A per channel and ≤16 A aggregate at 56 to 70 °C
