National Instruments NI-9866 1-Port C Series LIN Interface Module

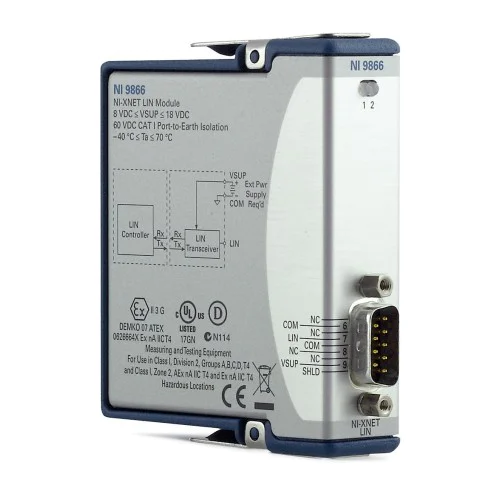

1 image: Click to enlarge
National Instruments · CompactDAQ / CompactRIO

NI-9866

The NI-9866 is a single-port C Series LIN interface module for applications developed with NI-XNET. It supports LIN communication alongside DAQ measurements in supported CompactDAQ systems or embedded control in supported CompactRIO systems.

ManufacturerNational Instruments
ModelNI-9866
Part Number781963-01
Product Type1-Port C Series LIN Interface Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9866

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
LIN ports1
Maximum baud rate20 kbps
Connector9-pin male D-Sub
External supply+8 to +18 VDC
DriverNI-XNET
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9866 brings LIN bus communication into the NI C Series ecosystem. NI identifies hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, and automation control as relevant applications.

System integration requires a supported chassis and software combination. Consult the NI-XNET release documentation for the intended host platform rather than assuming support across every CompactDAQ or CompactRIO system.

  • Single-port LIN interface using the NI-XNET driver.
  • LIN port isolated from other system modules.
  • Software-selectable LIN master termination.
  • Supports external timing and triggering.
Verified specifications

Technical data

Verified product specifications.

Number of LIN ports1
Maximum baud rate20 kbps
LIN connector9-pin male D-Sub
External supply voltage, normal operation+8 to +18 VDC
LIN controller complianceLIN 1.3 / 2.0 / 2.1 / 2.2
TransceiverNXP TJA1028
Maximum chassis power consumption, active mode1 W
Operating temperature-40 to +70 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Supported system platforms, subject to chassis and software requirements

NI-9866

C Series LIN interface module

Application driver

NI-XNET

Verify chassis and driver support; external power is required for LIN operation.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9866 Official Product PageProduct Page · ni.com
Open →
NI 9866 Operating Instructions and SpecificationsOperating Instructions And Specifications · download.ni.com
Open →
NI-XNET 19.1 ReadmeVersion-specific Hardware And Platform Support · download.ni.com
Open →
Configure LIN Protocol Versions with NI-XNETTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9861View product →
Related model
NI-9862View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9866 require external power?

Yes. Supply +8 to +18 VDC to VSUP, pin 9. Power on VSUP is required for LIN operation.

Which pins carry LIN and reference ground?

Pin 7 carries LIN; pins 3 and 6 are COM. Pin 5 is the optional shield connection.

Can the NI-9866 operate in CompactDAQ and CompactRIO?

Yes, on supported systems. Check the NI-XNET release documentation for chassis, controller, and software requirements.
