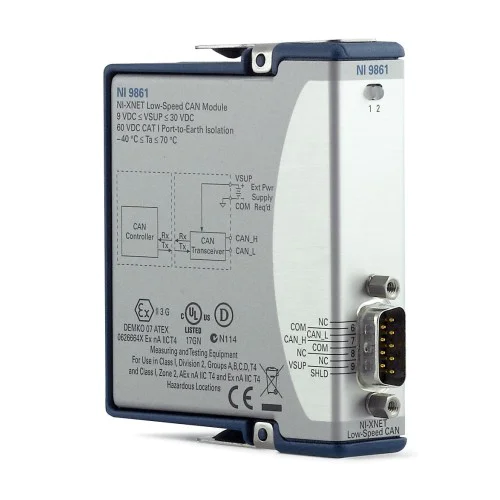

National Instruments NI-9861 Low-speed/fault-tolerant CAN interface module
1 image: Click to enlarge
National Instruments · CompactDAQ and CompactRIO

NI-9861

The NI-9861 is a single-port C Series low-speed/fault-tolerant CAN interface for NI-XNET applications in supported CompactDAQ and CompactRIO systems.

ManufacturerNational Instruments
ModelNI-9861
Part Number781962-01
Product TypeLow-speed/fault-tolerant CAN interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9861

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
CAN ports1
Physical layerLow-speed/fault-tolerant CAN
Maximum baud rate125 kbps
External supply9–30 V DC required
Operating temperature-40 to 70 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9861 brings CAN frame and signal handling into modular measurement and control systems. NI identifies applications including hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, and automation control.

The CAN transceiver requires external power. CompactRIO installation also requires the platform-specific NI-XNET setup procedure; consult the installation notes before configuring a system.

  • Single low-speed/fault-tolerant CAN port.
  • Maximum CAN baud rate of 125 kbps.
  • NI-XNET driver integration.
  • Enclosed C Series module without conformal coating.
Verified specifications

Technical data

Verified product specifications.

Number of CAN ports1 port
CAN physical layerLow-speed/fault-tolerant
Maximum baud rate125 kbps
External CAN supply voltage9–30 V DC
Chassis power consumption, active mode1 maximum W
Operating temperature-40 to 70 °C
WeightApproximately 144 g
Ingress protectionIP40
EnclosedYes
Conformal coatedNo
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

C Series

Modular hardware family

NI-9861

Low-speed/fault-tolerant CAN interface

Software

NI-XNET

Provide external transceiver power and verify the exact chassis, controller, and software combination against the applicable NI-XNET readme.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9861 Product PageProduct Page · ni.com
Open →
NI-9861 SpecificationsSpecifications · ni.com
Open →
NI-9861 Getting StartedGetting Started Guide · ni.com
Open →
NI 9861, NI 9862, and NI 9866 Installation NotesInstallation Notes · download.ni.com
Open →
NI-XNET 20.5.1 Readme: Supported Hardware and PlatformsTechnical resource
Open →
Troubleshooting Undetected XNET ModulesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9862View product →
Related model
NI-9866View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9861 require an external power supply?

Yes. External power is required for the CAN transceiver, with a specified supply range of 9–30 V DC.

What is the maximum CAN baud rate?

The maximum baud rate is 125 kbps for the low-speed/fault-tolerant CAN interface.

Which driver is used with the NI-9861?

The module uses NI-XNET. Check the readme for your driver release to confirm chassis, controller, and software support.
