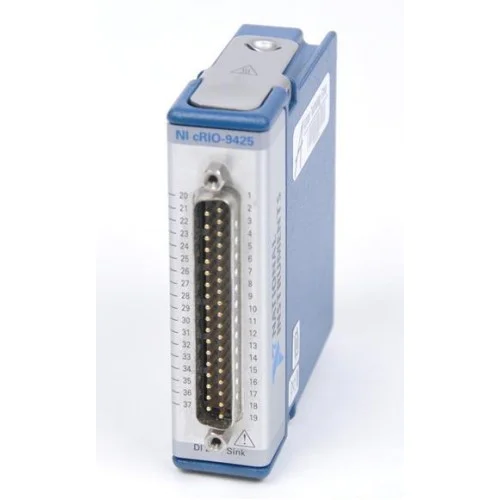

National Instruments NI-9425 C Series digital input module
1 image: Click to enlarge
National Instruments · CompactDAQ / CompactRIO

NI-9425

The NI-9425 is a 32-channel C Series sinking digital input module for industrial logic signals. This catalog record identifies the D-Sub version associated with part number 779139-01.

ManufacturerNational Instruments
ModelNI-9425
Part Number779139-01
Product TypeC Series digital input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9425

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Digital inputs32 sinking channels
Logic level24 V industrial logic
Signal connection37-pin D-Sub
Isolation60 V DC continuous channel-to-earth, CAT I (D-Sub)
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9425 connects industrial switches, transducers and other digital devices to a modular C Series system. Its sinking inputs accept signals from sourcing devices.

NI offers multiple NI-9425 connector variants. Use the D-Sub documentation and accessories for the 779139-01 version; spring-terminal isolation specifications do not apply to this connector variant.

  • 32 digital input channels with sinking input circuitry.
  • Supports direct connections to industrial 24 V logic signals.
  • D-Sub version supports NI-9923 front-mount terminal-block connectivity.
Verified specifications

Technical data

Verified product specifications.

Digital input channels32 channels
Input typeSinking
Signal connector37-pin D-Sub
OFF-state input voltage≤5 V
ON-state input voltage≥10 V
Input impedance30 ±5% kΩ
Update/transfer time7 maximum in CompactRIO; 8 maximum with cRIO-9151. Other systems have additional driver and system latency. µs
D-Sub channel-to-earth isolation60 continuous, CAT I V DC
Channel-to-channel isolationNone
Operating temperature-40 to 70 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

C Series

Modular I/O family for CompactDAQ and CompactRIO systems

NI-9425

Sinking digital input module

CompactDAQ limitation

The NI-9425 cannot perform counter operations in a CompactDAQ chassis.

Confirm the connector variant and chassis support before selecting wiring accessories.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9425 Official Product PageProduct Page · ni.com
Open →
NI 9425 DatasheetDatasheet · download.ni.com
Open →
NI-9425 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
NI-9425 Mechanical Drawings and CAD ModelsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9421View product →
Related model
NI-9423View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the NI-9425 perform counter operations in CompactDAQ?

No. NI explicitly excludes counter operations when this module is used in a CompactDAQ chassis.

Which terminal block does NI list for the D-Sub version?

NI lists the NI-9923 front-mount terminal block, part number 781503-01, for NI-9425 part number 779139-01.
