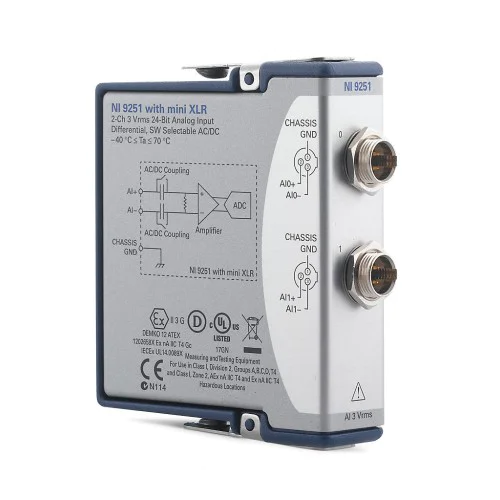

National Instruments NI-9251 C Series voltage input module
1 image: Click to enlarge
National Instruments · CompactDAQ / CompactRIO

NI-9251

The NI-9251 is a two-channel, 24-bit C Series voltage input module with a 3 Vrms input range and simultaneous sampling up to 102.4 kS/s per channel. It provides mini XLR connections and AC/DC coupling.

ManufacturerNational Instruments
ModelNI-9251
Product TypeC Series voltage input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9251

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Input channels2 differential
Resolution24 bit
Input range3 Vrms
Maximum sample rate102.4 kS/s/ch, simultaneous
Signal connectionmini XLR
Input couplingAC or DC
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9251 combines two differential analog input channels with 24-bit conversion and simultaneous acquisition. Its 3 Vrms range and AC/DC coupling support voltage signal acquisition through mini XLR connections.

As an NI C Series module, the NI-9251 fits into supported CompactDAQ and CompactRIO systems. System selection must account for the specific chassis, programming mode, and driver support; the module has no input isolation.

  • Two differential analog input channels.
  • Simultaneous acquisition at up to 102.4 kS/s per channel with 24-bit resolution.
  • 3 Vrms voltage input range with AC and DC coupling.
  • Mini XLR signal connections.
Verified specifications

Technical data

Verified product specifications.

Differential analog input channels2 channels
Analog input resolution24 bit
Analog input range3 Vrms
Maximum sample rate per channel102.4 kS/s/ch
Simultaneous samplingYes
Input couplingAC/DC
Front connectionmini XLR
Input isolationNone
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Supported system platforms, subject to hardware and programming-mode requirements

NI-9251

C Series two-channel voltage input module

Signal interface

Mini XLR inputs with AC/DC coupling

Check the exact chassis and programming mode in NI's compatibility table before system integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 9251 with mini XLR Calibration ProcedureManufacturer Procedure · download.ni.com
Open →
C Series Module and CompactDAQ or CompactRIO Hardware CompatibilityHardware Compatibility Guide · ni.com
Open →
NI-9251 Product CertificationsProduct Certification Index · ni.com
Open →
Signal-Based Synchronization of Analog Input C Series Modules with NI-DAQmx in LabVIEWTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9201View product →
Related model
NI-9205View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9251 sample both channels simultaneously?

Yes. The NI-9251 provides simultaneous sampling at up to 102.4 kS/s per channel with 24-bit resolution.

What input range and coupling does the NI-9251 provide?

The module has a 3 Vrms input range and supports AC and DC coupling.

What connectors does the NI-9251 use?

The NI-9251 uses mini XLR connections for its analog inputs.

Are the NI-9251 inputs isolated?

No. NI lists no continuous isolation for the NI-9251.
