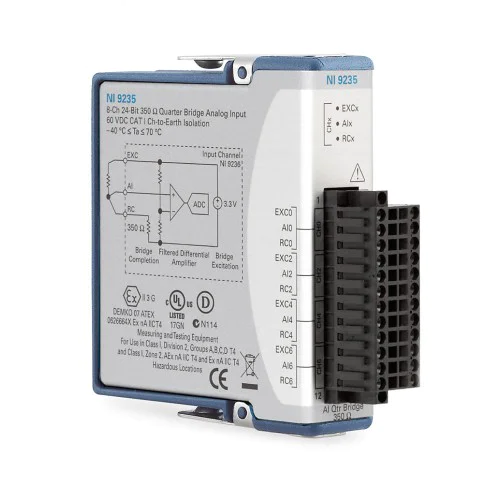

NI (National Instruments) NI-9235 10 kS/s/channel, 120 Ω Quarter-Bridge Strain Gage, 8-Channel C Series Strain/Bridge Input Module
1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9235

The NI-9235 is an 8-channel C Series strain input module for 120 Ω quarter-bridge measurements. It samples all channels simultaneously at up to 10 kS/s per channel.

ManufacturerNI (National Instruments)
ModelNI-9235
Part Number785995-01
Product Type10 kS/s/channel, 120 Ω Quarter-Bridge Strain Gage, 8-Channel C Series Strain/Bridge Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9235

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bridge ConfigurationsQuarter Bridge
Max Differential Analog Input Channels8
Analog Input Voltage Range-29.4 mV/V to 29.4 mV/V
Maximum Sample Rate10 kS/s/ch
Front Connection TypeSpring Terminal
Supported Hardware PlatformC Series
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9235 measures strain from 120 Ω quarter-bridge sensors using eight simultaneously sampled inputs. Simultaneous acquisition supports comparisons between channels at the same instant during dynamic strain measurements.

The enclosed C Series module uses spring-terminal connections and provides built-in voltage excitation for quarter-bridge sensors. Its specified input range is -29.4 to 29.4 mV/V.

  • Eight analog input channels with simultaneous sampling.
  • Maximum acquisition rate of 10 kS/s per channel.
  • Quarter-bridge inputs for 120 Ω strain gauges.
  • Input range of -29.4 to 29.4 mV/V.
  • Spring-terminal front connections and enclosed construction.
  • Specified operating temperature range of -40 °C to 70 °C.
Verified specifications

Technical data

Verified product specifications.

Bridge ConfigurationsQuarter Bridge
Maximum Number of Differential Analog Input Channels8
Conformal CoatedNo
Analog Input Voltage Range-29.4 mV/V to 29.4 mV/V
EnclosedYes
Maximum Sample Rate10 kS/s/ch
Front Connection TypeSpring Terminal
Supported Hardware PlatformC Series
Bridge Resistance120 Ohm
Number of Analog Input Channels8
Simultaneous SamplingYes
Operating Temperature Range-40 °C to 70 °C
Bus ConnectionC Series
Analog Input Isolation60 VDC Ch-Earth Ground Isolation
Supported Sensor TypeBridge, Strain Gauge
NI part numbers785995-01
