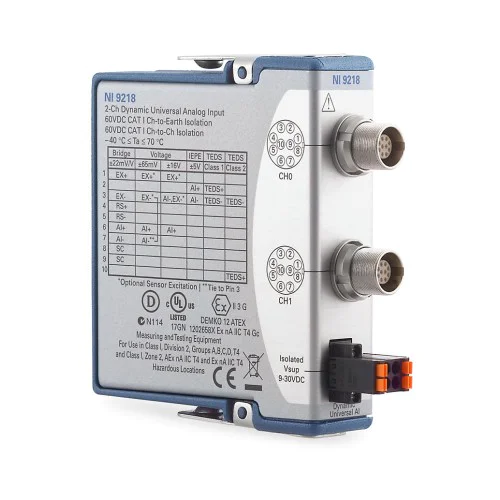

NI (National Instruments) NI-9218 51.2 kS/s/ch, 2-Channel C Series Universal Static Input Module
1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9218

The NI-9218 is a 2-channel C Series universal static input module with 24-bit resolution and a maximum sample rate of 51.2 kS/s/ch. It supports current, voltage and multiple sensor types with individually selectable measurement channels.

ManufacturerNI (National Instruments)
ModelNI-9218
Part Number783362-01 · 783367-01
Product Type51.2 kS/s/ch, 2-Channel C Series Universal Static Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9218

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels2
Maximum Sample Rate51.2 kS/s/ch
Electrical Signal MeasuredCurrent, Voltage
Supported Sensor TypeIEPE, Accelerometer, Bridge, Powered
Analog Input Isolation60 VDC Ch-Ch Isolation
Supported Hardware PlatformC Series
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9218 combines two individually selectable input channels in a C Series module, allowing different measurement types on each channel. It supports current and voltage measurements as well as IEPE, accelerometer, bridge and powered sensors.

The module provides 24-bit analog input resolution, anti-alias filtering and a maximum sample rate of 51.2 kS/s/ch. Its enclosed design includes 60 VDC channel-to-channel isolation and diagnostics for excitation faults and open current loops.

  • Two differential analog input channels with individually selectable measurement types.
  • 24-bit resolution with sampling up to 51.2 kS/s per channel.
  • Supports current, voltage, IEPE, accelerometer, bridge and powered-sensor measurements.
  • Quarter-bridge and half-bridge configuration support.
  • Anti-alias filtering.
  • 60 VDC channel-to-channel analog input isolation.
  • Diagnostics for excitation faults and open current loops.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels2
Conformal CoatedNo
EnclosedYes
Maximum Sample Rate51.2 kS/s/ch
Electrical Signal MeasuredCurrent, Voltage
Supported Sensor TypeIEPE, Accelerometer, Bridge, Powered
Analog Input Isolation60 VDC Ch-Ch Isolation
Supported Hardware PlatformC Series
Bridge ConfigurationsQuarter Bridge, Half Bridge
Analog Input Resolution24 bits
FilteringAnti-Alias
DiagnosticsExcitation Fault, Open Current Loop
NI part numbers783362-01, 783367-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9218

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9235View product →
Related model
NI-9236View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What signals and sensors does the NI-9218 support?

The NI-9218 measures current and voltage and supports IEPE, accelerometer, bridge and powered sensors.

How many channels does the NI-9218 have, and how fast can it sample?

It has two differential analog input channels with 24-bit resolution and a maximum sample rate of 51.2 kS/s per channel.

Can each channel use a different measurement type?

Yes. The channels are individually selectable for different measurements on each channel.

Which bridge configurations are supported?

The supplied verified specifications list quarter-bridge and half-bridge configurations.

Which NI part numbers are associated with the NI-9218?

The listed NI part numbers are 783362-01 and 783367-01. Confirm the required configuration before selecting a part number.
