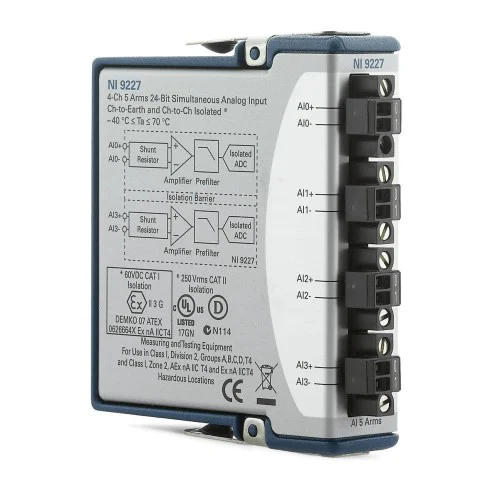

The NI-9227 is a four-channel C Series current input module offering 24-bit resolution, sampling up to 50 kS/s per channel and a 5 Arms measurement range.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The NI-9227 supports direct current measurement using internal shunts. It provides waveform data for subsequent measurement analysis.
Combined with a C Series voltage input module, it supports power and energy consumption measurements for appliance and electronic device testing.
Verified product specifications.
| Analog input channels | 4 channels |
|---|---|
| Analog input resolution | 24 bits |
| Maximum sample rate | 50 kS/s/ch |
| Analog input current range | 0 to 5 Arms |
| Channel-to-channel isolation | 250 Vrms |
| Front connection for 781099-02 | Screw terminal |
| Conformal coating for 781099-02 | Yes |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module interface and family
Current input module
Consult NI's C Series hardware compatibility matrix for chassis and programming-mode selection.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI documents direct current measurement through internal shunts, so an external shunt is not required for that measurement arrangement.
NI lists the NI-9976 two-position screw terminal and NI-9971 strain relief and operator protection accessory for the screw-terminal version.
