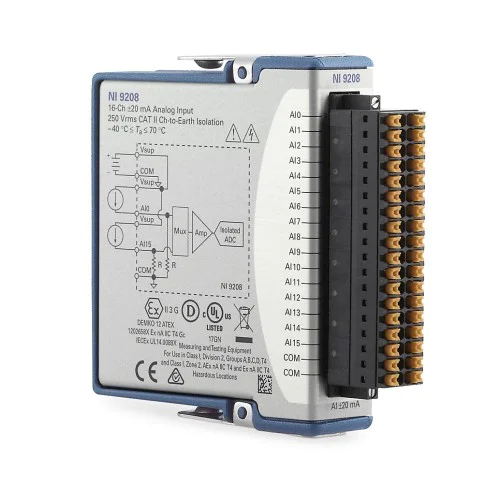

NI (National Instruments) NI-9208 500 S/s, ±20 mA, 16-Channel C Series Current Input Module
1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9208

The NI-9208 is a 16-channel C Series current input module with 24-bit resolution, a 500 S/s maximum sample rate and a -20 mA to 20 mA input range.

ManufacturerNI (National Instruments)
ModelNI-9208
Part Number785041-01 · 780968-01
Product Type500 S/s, ±20 mA, 16-Channel C Series Current Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9208

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Single-Ended Analog Input Channels16
Analog Input Resolution24 bits
Maximum Sample Rate500 S/s
Measure Current-20 mA to 20 mA
Analog Input Channels16
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9208 provides 16 single-ended current input channels in an enclosed C Series module. Its bipolar -20 mA to 20 mA measurement range and 24-bit resolution support multichannel current acquisition.

The module includes a high-resolution mode with 50/60 Hz rejection to reduce low-frequency noise. Its specified operating temperature range is -40 °C to 70 °C. Review the NI specifications and getting-started guide when planning installation and acquisition settings.

  • 16 single-ended analog current input channels.
  • 24-bit analog input resolution.
  • Maximum sample rate of 500 S/s.
  • Bipolar current measurement range of -20 mA to 20 mA.
  • High-resolution mode with 50/60 Hz rejection.
  • Enclosed construction with a C Series bus connection.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Single-Ended Analog Input Channels16
EnclosedYes
Analog Input Resolution24 bits
Maximum Sample Rate500 S/s
Measure Current-20 mA to 20 mA
Number of Analog Input Channels16
Analog Input Current Range-20 mA to 20 mA
Operating Temperature Range-40 °C to 70 °C
Bus ConnectionC Series
NI part numbers785041-01, 780968-01, 780968-02
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Bus Connection

NI-9208

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9246View product →
Related model
NI-9247View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many input channels does the NI-9208 have?

The NI-9208 has 16 single-ended analog input channels and no differential analog input channels.

What current range does the NI-9208 measure?

The analog input current range is -20 mA to 20 mA.

What are its resolution and maximum sample rate?

The NI-9208 provides 24-bit resolution and a maximum sample rate of 500 S/s. Consult the NI specifications for acquisition-mode details.

Does the NI-9208 offer power-line noise rejection?

Yes. Its high-resolution mode includes 50/60 Hz rejection to reduce low-frequency noise.

What is the operating temperature range?

The specified operating temperature range is -40 °C to 70 °C.
