ni 9223

NI-9223

$0.00

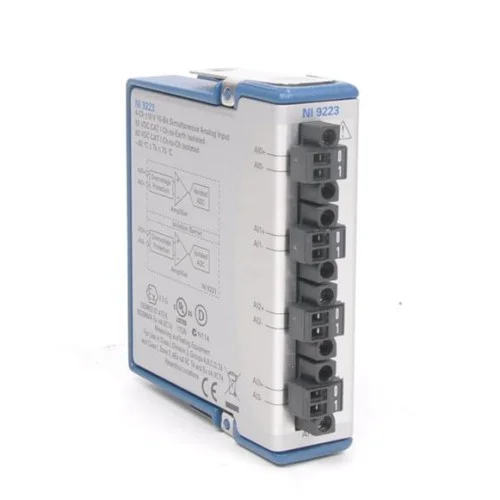

Category: CompactDAQ Tag: NI-9223 781398-01 C Series Input Voltage Module Brand: National Instruments

Evaluate NI-9223 with specialist support for compatibility, condition, lead time, calibration, and documentation.

Need availability, lead time, calibration details, or a formal quote?

Request a quote Call +1410-936-8670

Technical information

Everything you need to evaluate this unit

Overview

Maximum Number of Single-Ended Analog Input Channels: 0.
Maximum Number of Differential Analog Input Channels: 4.
Analog Input Voltage Range: -10 V to 10 V.
Maximum Sample Rate: 1 MS/s/ch.
Simultaneous Sampling: Yes.
Analog Input Resolution: 16 bits.
Front Connection Type: BNC.
Analog Input Isolation: 60 VDC Ch-Ch Isolation.
Conformal Coated: No.
Enclosed: Yes.
