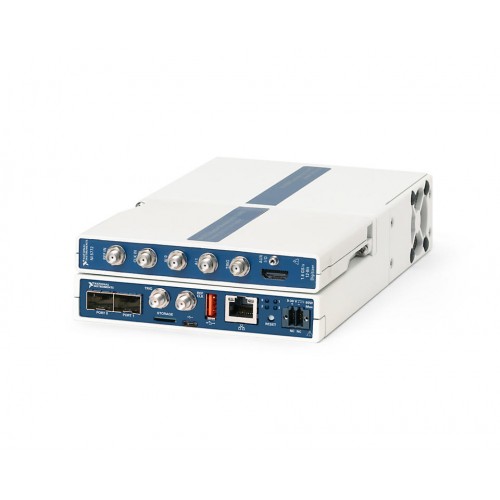

National Instruments NI-7935 Standalone FPGA controller

1 image: Click to enlarge

National Instruments · FlexRIO

NI-7935

The NI-7935 is a standalone FlexRIO controller combining a Kintex-7 K410T FPGA with an embedded ARM processor. It provides 2 GB of FPGA-accessible memory and two SFP+ ports for streaming.

ManufacturerNational Instruments

ModelNI-7935

Part Number783766-01

Product TypeStandalone FPGA controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-7935

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformStandalone FlexRIO

FPGAXilinx Kintex-7 XC7K410T

FPGA-accessible DRAM2 GB

ProcessorDual-core ARM Cortex-A9, 667 MHz

Operating systemNI Linux Real-Time (32-bit)

Serial streamingTwo SFP+ ports

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for embedded signal processing with modular I/O, the NI-7935 brings programmable FPGA resources and a real-time processor into a standalone FlexRIO system. NI documentation identifies this controller as NI-7935R.

The architecture separates FPGA-accessible DRAM from processor memory. SFP+ interfaces support high-speed serial streaming, while Ethernet, USB and a MicroSD slot provide controller connectivity and storage options.

Kintex-7 FPGA with 63,550 logic slices and 1,540 DSP slices.
28,620 kbit of embedded FPGA block RAM.
SFP+ serial line rates of 3.125, 6.25 and 10.3125 Gbps.
FPGA data transfers through DMA, interrupts and programmed I/O.

Verified specifications

Technical data

Verified product specifications.

FPGA	Xilinx Kintex-7 XC7K410T
FPGA slices	63550 slices
DSP48 slices	1540 slices
Embedded block RAM	28620 kbit
FPGA-accessible DRAM	2 GB
Processor	Dual-core ARM Cortex-A9, Xilinx Zynq-7020 SoC
Processor clock	667 MHz
Processor DRAM	512 MB DDR3
Operating system	NI Linux Real-Time (32-bit)
SFP+ ports	2 ports
Supported serial line rates	3.125, 6.25, 10.3125 Gbps
Power input	9–30 VDC
Operating ambient temperature	0–55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FlexRIO

Modular FPGA and I/O platform

NI-7935 / NI-7935R

Standalone controller

Modular I/O

An attached FlexRIO adapter module determines the application-specific I/O characteristics.

Check the selected adapter module documentation for its I/O specifications and integration requirements.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-7935 Official Product PageProduct Page · ni.com

Open →

NI-7935R SpecificationsSpecifications PDF · download.ni.com

Open →

NI-7931R/7932R/7935R User ManualUser Manual PDF · docs-be.ni.com

Open →

Components of a FlexRIO System with Modular I/OTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Why do the manuals use NI-7935R rather than NI-7935?

NI labels the product page NI-7935 and describes part number 783766-01 as the NI 7935R Controller for FlexRIO. The associated hardware manuals use NI-7935R.

Is the 2 GB memory shared with the real-time processor?

The specifications identify 2 GB of FPGA-accessible DRAM separately from the processor's 512 MB DDR3 memory.

Is this a PXI Express module?

No. NI identifies the NI-7935R as a standalone FlexRIO controller rather than a PXI Express module.
