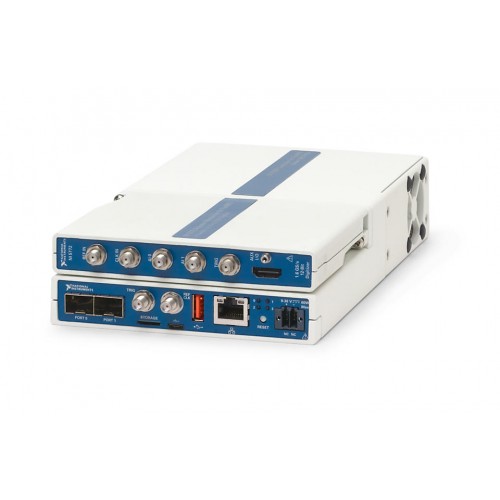

National Instruments NI-7932 Embedded FPGA controller

1 image: Click to enlarge

National Instruments · FlexRIO

NI-7932

The NI-7932 is a stand-alone FlexRIO controller combining a Kintex-7 FPGA with real-time processing and modular I/O. NI hardware documentation identifies the controller as NI-7932R and describes two SFP+ high-speed serial ports.

ManufacturerNational Instruments

ModelNI-7932

Product TypeEmbedded FPGA controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-7932

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformStand-alone FlexRIO

FPGAKintex-7 XC7K325T

FPGA DRAM2 GB

Serial connectivityTwo SFP+ ports

Operating systemNI Linux Real-Time

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-7932 brings FPGA-based acquisition and signal processing into a stand-alone FlexRIO architecture. Its modular I/O interface allows the controller to be configured around an appropriate FlexRIO adapter module rather than a fixed analog channel configuration.

The real-time processor handles system control and connectivity, while the FPGA supports deterministic processing. On the NI-7932R, dedicated SFP+ ports enable high-bandwidth streaming directly from the FPGA using supported protocol implementations such as Xilinx Aurora or 10 Gigabit Ethernet UDP.

Kintex-7 FPGA with 50,950 logic slices and 840 DSP slices.
16,020 kbit of FPGA block RAM and 2 GB of onboard FPGA DRAM.
Dual-core ARM Cortex-A9 processor running NI Linux Real-Time.
Two SFP+ high-speed serial interfaces for FPGA data streaming.

Verified specifications

Technical data

Verified product specifications.

FPGA	Kintex-7 XC7K325T
FPGA logic slices	50950 slices
FPGA DSP slices	840 slices
FPGA block RAM	16020 kbit
FPGA-accessible DRAM	2 GB
Supported SFP+ line rates	3.125, 6.25, 10.3125 Gbps
Processor	Dual-core ARM Cortex-A9
Operating system	NI Linux Real-Time

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FlexRIO

Modular FPGA instrumentation platform

NI-7932

Stand-alone controller; documented as NI-7932R

Modular I/O

FlexRIO adapter module interface provides application-specific I/O.

Confirm the NI-7932R hardware designation and adapter-specific software support before configuring a system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-7931R/7932R/7935R User ManualUser Manual · docs-be.ni.com

Open →

Supported OS in Controllers for FlexRIOSupport Article · knowledge.ni.com

Open →

FlexRIO 2023 Q2 ReadmeTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Why does the documentation refer to NI-7932R?

NI's operating-system support article lists NI-7932, while the hardware user manual uses NI-7932R. This catalog preserves NI-7932 as supplied; verify the device label when selecting documentation.

Can the controller run Windows?

No. NI specifies NI Linux Real-Time for these controllers and states that the operating system cannot be changed to Windows. A Windows computer can communicate with the embedded controller over a network.

Is this a PXI plug-in module?

No. NI identifies the NI-7932R as a stand-alone FlexRIO controller rather than a PXI or PXI Express plug-in module.
