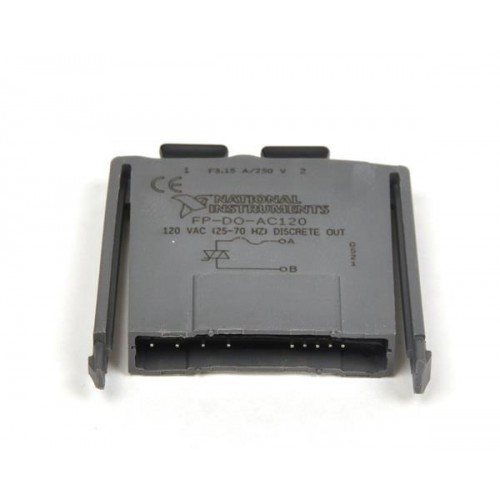

The FP-DO-AC120 provides two isolated AC outputs for FieldPoint distributed I/O systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The module mounts on the FP-TB-10, which accommodates up to six dual-channel modules in mixed I/O configurations.
Verified product specifications.
| Output voltage range | 24–140 VAC |
|---|---|
| AC frequency | 25–70 Hz |
| Current per channel | 0.75 at 25 °C; 0.50 at 40 °C; 0.30 at 60 °C A |
| Voltage drop | 1.0 at 0.5 A V |
| Maximum leakage | 2 mA rms |
| Maximum output delay | 0.5 AC cycle |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Platform and terminal base
AC output module
Installs on the FieldPoint FP-TB-10 terminal base.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The FP-TB-10.
No. It uses zero-crossing triac switching.
