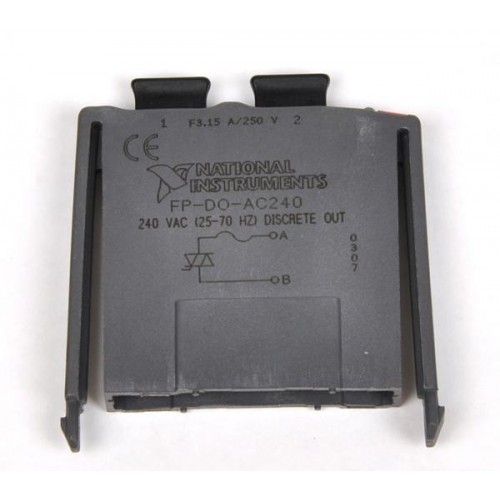

National Instruments FP-DO-AC240 AC discrete output module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-DO-AC240

The FP-DO-AC240 provides two isolated AC outputs for FieldPoint systems.

ManufacturerNational Instruments

ModelFP-DO-AC240

Product TypeAC discrete output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-DO-AC240

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Outputs2 isolated channels

Voltage24–280 VAC

Frequency25–70 Hz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Installs on the FP-TB-10 terminal base, which accommodates up to six dual-channel modules.

Zero-crossing triac outputs.
Individual channel LEDs.
Replaceable fuse per channel.

Verified specifications

Technical data

Verified product specifications.

Current per channel	0.75 at 25 °C; 0.50 at 40 °C; 0.30 at 60 °C A
Voltage drop	1.0 at 0.5 A V
Maximum leakage	4 mA rms
Maximum output delay	1/2 cycle

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Platform

FP-TB-10

Terminal base

FP-DO-AC240

Output module

Observe current derating and the manual's hazardous-voltage isolation restrictions.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this a DC output module?

No. Its triac outputs switch AC loads.
