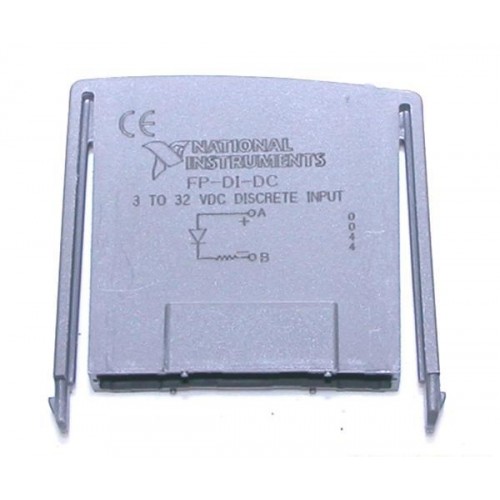

National Instruments FP-DI-DC DC discrete input module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-DI-DC

The NI FP-DI-DC provides two isolated DC inputs for FieldPoint systems.

ManufacturerNational Instruments

ModelFP-DI-DC

Product TypeDC discrete input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-DI-DC

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels2 isolated inputs

Nominal input5–24 VDC

Terminal baseFP-TB-10

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Each channel detects discrete voltage states and has a green ON/OFF indicator.

Channel-to-channel isolation.
Supports sinking or sourcing devices.
Maximum input delay: 0.4 ms.

Verified specifications

Technical data

Verified product specifications.

Input voltage range	0–32 VDC
ON voltage, minimum	3.0 VDC
OFF voltage, maximum	0.9 VDC
ON current, minimum	1.0 mA
OFF current, maximum	0.1 mA
Input impedance	1.8 kΩ

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint / FP-TB-10

Platform / terminal base

FP-DI-DC

DC input module

Compatibility

Used with the FP-TB-10 terminal base.

Consult the manual's isolation and safety instructions before wiring.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does it support sourcing devices?

Yes. Each isolated DC input supports sinking or sourcing devices.
