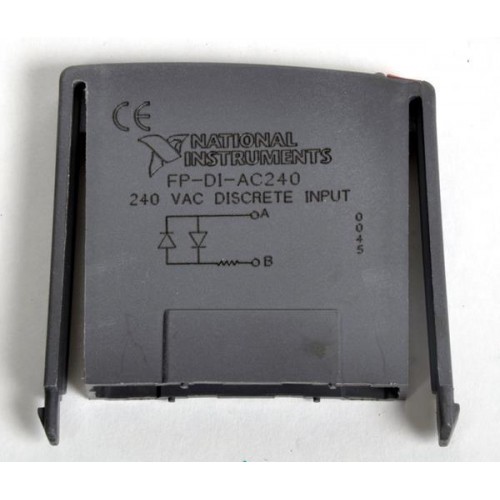

National Instruments FP-DI-AC240 Discrete input module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-DI-AC240

The NI FP-DI-AC240 is a FieldPoint module with two isolated discrete inputs and a nominal input of 240 VAC.

ManufacturerNational Instruments

ModelFP-DI-AC240

Product TypeDiscrete input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-DI-AC240

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels2 isolated inputs

Nominal input240 VAC

Maximum delay20 ms

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Used with the FP-TB-10 terminal base, this module indicates each channel's ON/OFF state with a green LED.

Channel-to-channel isolation.
Individual channel status LEDs.
64 kΩ input impedance.

Verified specifications

Technical data

Verified product specifications.

Input voltage range	0 to 280 VAC/VDC
Minimum ON voltage	180 VAC
Maximum OFF voltage	50 VAC
Minimum ON current	2.6 mA
Maximum OFF current	1.0 mA

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint / FP-TB-10

Platform and terminal base

FP-DI-AC240

Discrete input module

Compatibility

For use with FP-TB-10.

Review the manual's hazardous-voltage precautions; channel isolation is not a channel-to-channel safety barrier.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which terminal base does it use?

The FP-TB-10.

How does it differ from FP-DI-AC120?

Nominal input is 240 VAC rather than 120 VAC.
