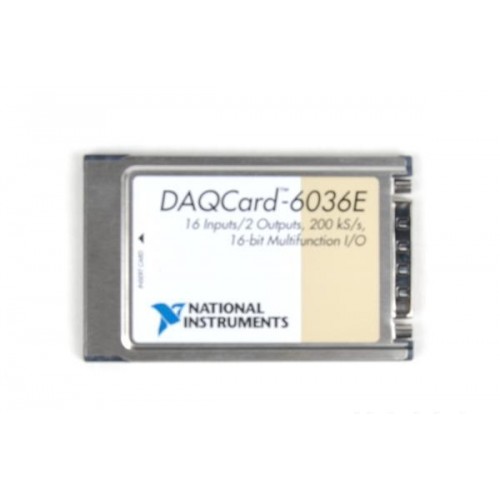

National Instruments DAQCARD-6036E Multifunction data acquisition card
1 image: Click to enlarge
National Instruments · DAQCard

DAQCARD-6036E

The National Instruments DAQCard-6036E is a multifunction DAQ card with 16-bit analog input at up to 200 kS/s, two analog outputs, eight digital I/O lines and two counters/timers.

ManufacturerNational Instruments
ModelDAQCARD-6036E
Product TypeMultifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQCARD-6036E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input resolution16 bits
Maximum sampling rate200 kS/s
Analog outputs2 channels, 16-bit
Digital I/O and counters8 digital I/O lines; 2 counters/timers
I/O connector68-pin VHDCI
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The DAQCard-6036E combines analog acquisition, analog output, digital I/O and counter/timer functions in the NI DAQCard platform. NI identifies it within its legacy 60xxE multifunction I/O hardware.

Analog inputs support software-selectable single-ended or differential configurations. The DAQCard model has a 1,024-sample input FIFO and does not support DMA; PCI-6036E specifications must not be substituted for DAQCard-specific values.

  • 16-bit analog acquisition with a maximum sampling rate of 200 kS/s.
  • Two analog output channels alongside eight digital I/O lines.
  • Two counters/timers for timing and counting functions.
  • 68-pin VHDCI signal connection covered by NI's model-specific cable and accessory guide.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential; software-selectable per channel
ADC resolution16 bits
Maximum analog input sampling rate200 kS/s
Analog input ranges±10 V, ±5 V, ±500 mV, ±50 mV
Analog input FIFO1024 samples
Analog output channels2 channels
Analog output resolution16 bits
Analog output range±10 V
Digital I/O8 lines
Counters/timers2
I/O connector68-pin VHDCI
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

E Series / DAQCard

Multifunction DAQ family and card platform

DAQCard-6036E

Multifunction I/O device

Signal connectivity

NI groups this model with its 68-pin VHDCI DAQCard devices for cable selection.

Check the exact driver release, operating-system architecture and model-specific cable requirements before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6034E/6035E/6036E Family SpecificationsSpecifications · download.ni.com
Open →
Archived 60xx/60xxE Cable and Accessory Compatibility GuideCompatibility Guide · ni.com
Open →
NI-DAQmx 16.0 ReadmeHistorical Driver Support · ni.com
Open →
NI-DAQ 7.2 Readme: Historical Device SupportTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
DAQCARD-6024EView product →
Related model
DAQCARD-6062EView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the DAQCard-6036E support DMA?

No. NI explicitly excludes the DAQCard-6036E from DMA support in the family specifications.

Does NI-DAQmx 16.0 support this card on 64-bit Windows?

The NI-DAQmx 16.0 readme lists support on 32-bit Windows 10, 8.1 and 7, but not their 64-bit versions. This is release-specific historical evidence, not confirmation of support in current drivers.
