National Instruments DAQCARD-6024E Multifunction data acquisition card

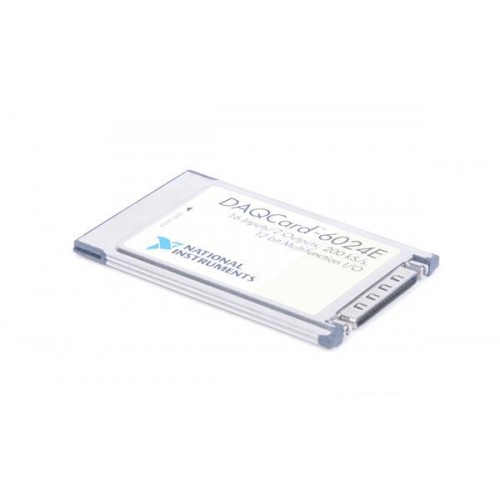

1 image: Click to enlarge

National Instruments · PCMCIA

DAQCARD-6024E

Name: DAQCARD-6024E
Brand: National Instruments

The National Instruments DAQCard-6024E is a multifunction PCMCIA data acquisition card with 12-bit analog input at up to 200 kS/s. It also provides two analog output channels, eight digital I/O lines, and two counter/timers.

ManufacturerNational Instruments

ModelDAQCARD-6024E

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQCARD-6024E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfacePCMCIA

Analog inputs16 single-ended or 8 differential

Input conversion12-bit, up to 200 kS/s

Analog outputs2 channels

Digital I/O8 lines

Counter/timers2
