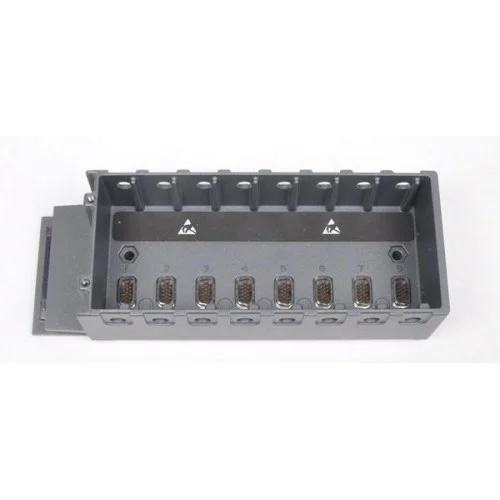

CRIO-9114

The NI cRIO-9114 is an eight-slot CompactRIO chassis with a Virtex-5 LX50 FPGA for C Series I/O. It requires a compatible CompactRIO controller rather than operating as a standalone controller.

ManufacturerNational Instruments

ModelCRIO-9114

Part Number780918-01 · 780918-02

Product TypeReconfigurable embedded FPGA chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CRIO-9114

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformCompactRIO

I/O slots8 C Series slots

FPGAVirtex-5 LX50

ProgrammingScan Mode or onboard FPGA

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The cRIO-9114 provides the FPGA chassis portion of a modular CompactRIO system. Its eight slots accommodate C Series I/O modules for distributed control and monitoring.

Scan Mode supports real-time system expansion, while FPGA programming supports inline processing and high-speed I/O and control. A compatible CompactRIO controller communicates with the installed modules.

Eight-slot layout for modular C Series I/O.
Onboard Virtex-5 LX50 FPGA for reconfigurable processing.
Supports Scan Mode and FPGA-based I/O programming.
Panel and DIN rail mounting options described in the installation manual.

Verified specifications

Technical data

Verified product specifications.

I/O slot count	8 slots
FPGA	Virtex-5 LX50
FPGA embedded block RAM	1728 kbits
DSP48 slices	48 slices
Operating temperature	-40 to 70; thermally conductive mounting required at 56 to 70 °C
Storage temperature	-40 to 85 °C
Weight	Approximately 880 g
Ingress protection	IP40
