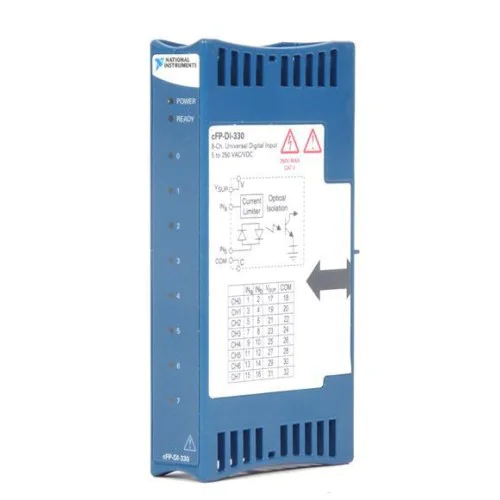

The NI CFP-DI-330 is an eight-channel Compact FieldPoint digital input module supporting sinking/sourcing signals and AC/DC voltage sensing.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Within NI's Compact FieldPoint platform, the CFP-DI-330 provides universal digital sensing rather than analog measurement or digital output. NI identifies it separately from the DI-300, DI-301 and DI-304 sinking-input models.
Verified product specifications.
| Digital input channels | 8 channels |
|---|---|
| Maximum input voltage | 250 VAC or 250 VDC |
| DC ON-state magnitude | 4–250 VDC |
| 50/60 Hz AC ON-state voltage | 15–250 VAC |
| Input current limiting | 1.5 mA |
| Input delay | 1.2 ms |
| Operating temperature | -40 to 70 °C |
| Module weight | 100 g |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Backplane platform
Digital input
Mounts on cFP-BP-x backplanes.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI specifies eight inputs for the CFP-DI-330.
No. NI lists it as a migration comparison, but the NI 9437 is sinking-only and accepts 24–250 VDC, unlike the CFP-DI-330's sinking/sourcing AC/DC inputs.
