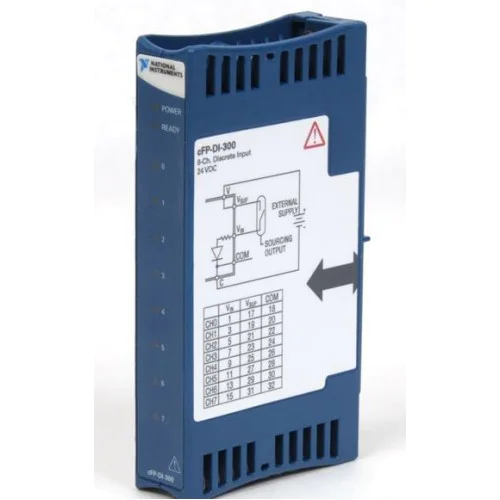

National Instruments CFP-DI-300 Digital input module

1 image: Click to enlarge

National Instruments · Compact FieldPoint

CFP-DI-300

The CFP-DI-300 is an eight-channel Compact FieldPoint digital input module with 24 VDC sinking inputs.

ManufacturerNational Instruments

ModelCFP-DI-300

Product TypeDigital input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-DI-300

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels8 digital inputs

Input range0–30 VDC

Operating temperature−40 to 70 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The module mounts on a cFP-BP-x or cFP-180x backplane. Field wiring connects through a cFP-CB-x connector block.

Compatible with 24 VDC sourcing outputs.
Individual input-state LEDs plus POWER and READY indicators.
Current-limited inputs with a shared common reference.

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Platform

CFP-DI-300

Digital input

Compatibility

Mounts on cFP-BP-x or cFP-180x backplanes.

Inputs share common; channel-to-ground isolation is not channel-to-channel isolation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-DI-300 and cFP-DI-300 Operating InstructionsOperating Instructions · download.ni.com

Open →

Transitioning From Compact FieldPoint to CompactRIOPlatform Migration Guide · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Compact FieldPoint

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the CFP-DI-300 have 16 inputs?

No. It has eight inputs; NI lists the cFP-DI-301 as the 16-channel sinking-input model.

Are signals between 5 and 15 V reliably detected?

No. Within this region, an input may or may not register ON.
