National Instruments sbRIO-9237 Board-only strain/bridge analog input module

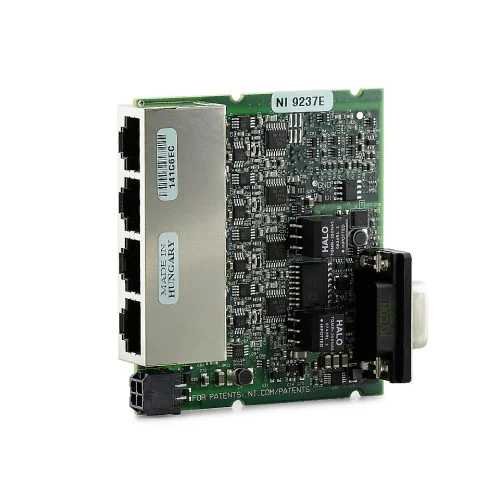

1 image: Click to enlarge

National Instruments · NI Single-Board RIO / CompactRIO

sbRIO-9237

The NI sbRIO-9237 is a board-only bridge analog input module, identified by NI as the NI 9237E. Part 781028-01 provides four channels with 24-bit resolution and sampling up to 50 kS/s/channel.

ManufacturerNational Instruments

ModelsbRIO-9237

Part Number781028-01

Product TypeBoard-only strain/bridge analog input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9237

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels4 differential inputs

Resolution24-bit

Maximum sampling50 kS/s/channel

Input range±25 mV/V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The non-enclosed sbRIO-9237 is intended for OEM integration. It includes signal conditioning and excitation for bridge-based sensors, with simultaneous acquisition for strain and load measurements.

NI lists 781028-01 as the NI 9237E board-only version and distinguishes it from the D-SUB version, 781209-01.

Simultaneous sampling with zero interchannel phase delay.
Built-in excitation for half-bridge and full-bridge sensors.
Four RJ50 jacks for sensor connections.

Verified specifications

Technical data

Verified product specifications.

Differential analog input channels	4 channels
Resolution	24 bit
Maximum sample rate	50 kS/s/channel
Input range	-25 to +25 mV/V
Simultaneous sampling	Yes
Front connection	RJ50
Enclosed	No
Conformal coating	No

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Embedded hardware ecosystem

sbRIO-9237 / NI 9237E

Board-only bridge input module

Compatibility

Supports Class 2 TEDS; verify the sensor's TEDS wiring scheme.

Confirm the controller, C Series connection hardware and sensor wiring before integration; do not assume compatibility from the catalog category.
