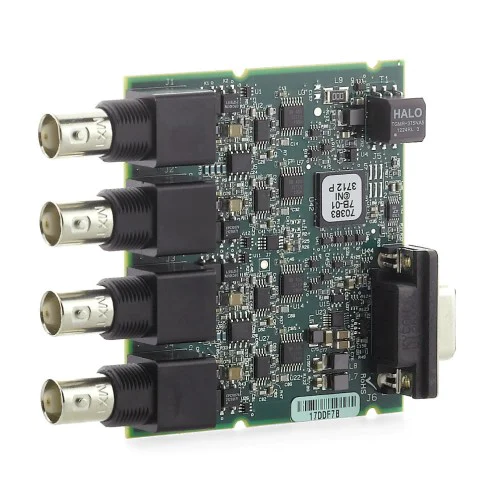

National Instruments sbRIO-9234 Board-only sound and vibration input module

1 image: Click to enlarge

National Instruments · Single-Board RIO / CompactRIO

sbRIO-9234

The sbRIO-9234 is a board-only C Series sound and vibration input module for OEM integration. NI also identifies part number 782718-01 as the NI 9234E.

ManufacturerNational Instruments

ModelsbRIO-9234

Part Number782718-01

Product TypeBoard-only sound and vibration input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9234

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels4, simultaneous

Maximum sample rate51.2 kS/s/channel

Input range±5 V

Resolution24-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This non-enclosed module supports IEPE and non-IEPE sensors. Software-selectable coupling and integrated signal conditioning support sound and vibration acquisition.

Simultaneous acquisition across all four inputs.
Anti-aliasing filters track the sample rate.
Supports smart TEDS sensors.

Verified specifications

Technical data

Verified product specifications.

Differential analog input channels	4 channels
Maximum sample rate	51.2 kS/s/channel
Input voltage range	-5 to +5 V
Resolution	24 bit
IEPE excitation	2 mA
Front connections	4 BNC
Analog input isolation	None
Input coupling	AC/DC
Enclosed	No
Conformal coated	No

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

OEM hardware ecosystem

C Series

Module interface

sbRIO-9234 / NI 9234E

Board-only measurement module

Confirm host support and board-level mounting requirements before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

sbRIO-9234 Product PageProduct Page · ni.com

NI 9234E Operating Instructions and SpecificationsOperating Instructions And Specifications · ni.com

sbRIO-9234 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com

sbRIO-9234 Mechanical Drawings and CADTechnical resource

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Explore equipment

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does NI 9234E relate to sbRIO-9234?

NI lists sbRIO-9234 part number 782718-01 with the description NI 9234E, a board-only module.

Does this module include an enclosure?

No. It is a board-only OEM module.
