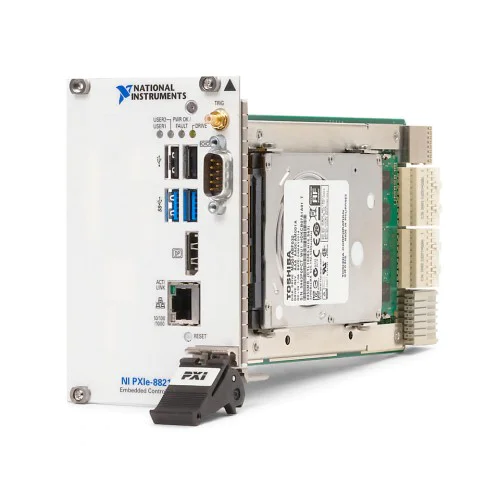

The NI PXIe-8821 is a PXI Express embedded controller with a 2.6 GHz dual-core Intel Core i3 processor and 2 GB/s maximum controller bandwidth.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXIe-8821 provides an embedded PC platform for PXI-based industrial control, data acquisition, and test and measurement systems. It includes Gigabit Ethernet, USB connections, an integrated hard drive, and a serial port.
Operating-system configuration depends on the part number. NI identifies 785158-33 as the LabVIEW Real-Time (Phar Lap) variant; the Windows 10 64-bit variant is 785545-01. Confirm the controller label and installed software before selecting an OS-specific configuration.
Verified product specifications.
| Bus interface | PXI Express |
|---|---|
| Processor | Intel Core i3-4110E |
| Processor cores | 2 cores |
| Processor frequency | 2.6 GHz |
| Maximum controller bandwidth | 2 GB/s |
| Manufacturer standard memory | 2 GB |
| Maximum memory | 8 GB |
| Manufacturer standard storage | 320 GB HDD |
| Removable HDD | No |
| Operating temperature range | 5 to 50 °C |
| Factory OS for part number 785158-33 | LabVIEW Real-Time (Phar Lap) |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Controller platform and interface
Embedded system controller
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI lists 785158-33 as LabVIEW Real-Time (Phar Lap), not Windows 10. The installed OS on this catalog unit has not been confirmed.
NI specifies a maximum controller-to-chassis-backplane bandwidth of 2 GB/s.
NI lists 2 GB standard memory and an 8 GB maximum. These are manufacturer configuration specifications, not confirmation of the memory installed in this unit.
