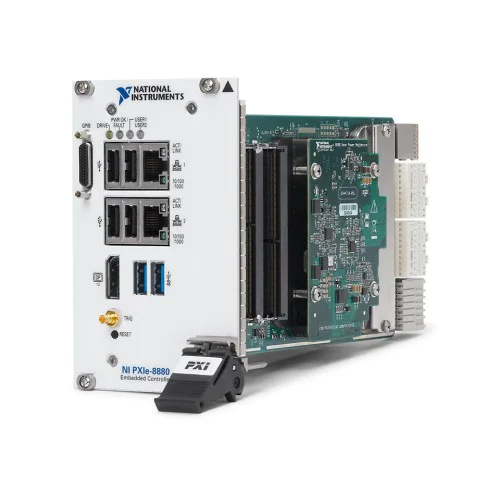

National Instruments PXIe-8880 Embedded system controller

1 image: Click to enlarge

National Instruments · PXI Express

PXIe-8880

Name: PXIe-8880
Brand: National Instruments

The NI PXIe-8880 is a PXI Express embedded controller powered by an eight-core Intel Xeon E5-2618L v3 processor. It provides up to 24 GB/s system bandwidth in each direction for measurement and automated test systems with a suitably configured chassis.

ManufacturerNational Instruments

ModelPXIe-8880

Product TypeEmbedded system controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-8880

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

ProcessorEight-core Intel Xeon E5-2618L v3

CPU frequency2.3 GHz base; up to 3.4 GHz single-core Turbo

System bandwidthUp to 24 GB/s in each direction

Memory capacityUp to 24 GB DDR4

Chassis spaceOne system slot plus three controller expansion slots

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-8880 places the host computer inside a PXI Express chassis, integrating an Intel Xeon processor, DDR4 memory and solid-state storage. Its front-panel connections include DisplayPort, USB, dual Gigabit Ethernet, GPIB and an SMB trigger connection.

Eight physical CPU cores and 16 logical cores for parallel processing.
Triple-channel DDR4-1866 memory architecture.
Two USB 3.0 ports and four USB 2.0 ports.
Two 10/100/1000 Ethernet ports and a DisplayPort video output.
IEEE 488.2 GPIB interface and SMB connection for routing PXI Express backplane triggers.

Verified specifications

Technical data

Verified product specifications.

Processor	Intel Xeon E5-2618L v3, eight cores
Base CPU frequency	2.3 GHz
Maximum single-core Turbo frequency	3.4 GHz
Maximum supported memory	24 GB
Maximum system bandwidth	Up to 24 in each direction; chassis-dependent GB/s
Form factor	Four-wide 3U PXI Express module
Slot requirements	One system slot plus three controller expansion slots
Operating ambient temperature	0 to 50; reduced to 0 to 45 with PXIe-1071, PXIe-1078 with kit 158034A-01, or PXIe-1086 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Modular instrumentation platform

PXIe-8880

Embedded system controller

System integration

Installs in the chassis system-controller position and requires three adjacent controller expansion slots.

Confirm chassis slot space, thermal limits and the unit's installed memory, storage and operating system before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXIe-8880 User ManualUser Manual · download.ni.com

Open →

PXIe-8880 SpecificationsSpecifications · ni.com

Open →

PXIe-8880 Front Panel ConnectorsGetting-started Reference · ni.com

Open →

PXIe-8880 Firmware and Additional DriversTechnical resource

Open →

Maximum Throughput of a PXI SystemTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How much chassis space does the PXIe-8880 require?

It is a four-wide 3U controller requiring one system slot and three controller expansion slots.

Does every chassis provide the controller's full 24 GB/s bandwidth?

No. System bandwidth depends on the chassis and controller link configuration. NI documents up to 24 GB/s with a 24 GB/s PXIe-1085 chassis; PXIe-1085 variants also exist with lower bandwidth.

What external instrument and peripheral connections are provided?

The front panel provides two Gigabit Ethernet ports, two USB 3.0 ports, four USB 2.0 ports, DisplayPort, a 25-pin Micro D GPIB connector and an SMB PXI Express trigger connector.

Is Windows 10 installed on this catalog unit?

NI documents Windows 10 64-bit configurations of the PXIe-8880, but the installed operating system on this particular unit has not been confirmed.
