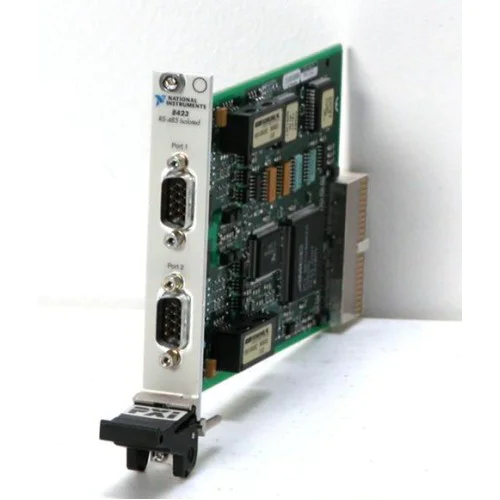

The National Instruments PXI-8423/2 provides two isolated RS-485/RS-422 serial ports in a PXI module, with male DB-9 connections.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This module belongs to NI’s PXI serial hardware family. Its isolated ports address serial communication where ground-level differences or electrical noise are concerns.
Verified product specifications.
| Port count | 2 ports |
|---|---|
| Connector | DB-9 male |
| Continuous isolation, port-to-port and port-to-host | 60 VDC, CAT I |
| Isolation withstand, port-to-port and port-to-host | 2000 Vrms; 5-second dielectric withstand test |
| Supply requirement | +5 VDC; 800 mA typical, 1.3 A maximum |
| Board dimensions | 100 × 160 mm |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Hardware platform
Isolated serial interface
Supports two- and four-wire RS-485 devices through hardware transceiver control modes.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. NI documents RS-422 and RS-485 support.
No. The 2000 Vrms rating is a 5-second withstand test; continuous isolation is 60 VDC, CAT I.
