National Instruments · PXI

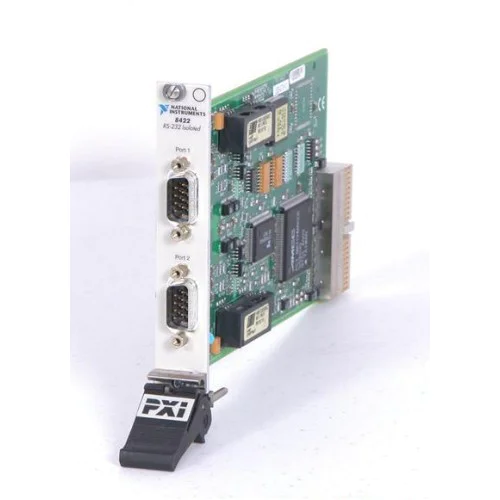

PXI-8422/2

The National Instruments PXI-8422/2 is a two-port isolated RS-232 serial interface for PXI systems. It provides DB-9 male connections and supports communication up to 115.2 kbaud.

ManufacturerNational Instruments

ModelPXI-8422/2

Product TypeIsolated RS-232 serial interface module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8422/2

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Serial ports2 RS-232

Maximum baud rate115.2 kbaud

ConnectionsDB-9 male

IsolationPort-to-port and port-to-host

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-8422/2 adds isolated RS-232 instrument communication to a PXI system. It is the two-port member of the PXI-8422 family; the four-port version uses a different connector arrangement.

Software selection is important for this legacy interface: NI states that NI-Serial 17.0 removed support for the PXI-8422 family. Verify the older driver release and operating-system requirements before integrating the module.

Two isolated RS-232 serial ports.
DB-9 male serial connectors.
64-byte FIFO size.

Verified specifications

Technical data

Verified product specifications.

Serial standard	RS-232
Port count	2 ports
Maximum baud rate	115.2 kbaud
I/O connector	DB-9 male
FIFO size	64 bytes
Continuous isolation, port-to-port and port-to-host	60 VDC, CAT I
Isolation withstand, port-to-port and port-to-host	2000 Vrms, verified by a 5-second dielectric withstand test
Dimensions	100 × 160 mm
Power requirement	+5 VDC; 400 mA typical, 650 mA maximum

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Hardware platform

PXI-8422/2

Two-port isolated RS-232 interface

Driver limitation

NI-Serial 17.0 removed PXI-8422 support.

Verify legacy driver and operating-system support. The 2000 Vrms withstand rating is not a continuous working-voltage rating.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI Serial Legacy Hardware Specifications and Features GuideSpecifications And Features Guide · docs-be.ni.com

Open →

Serial Quick Reference GuideConnector Pinout Reference · download.ni.com

Open →

NI-Serial 21.3 ReadmeDriver Support Reference · ni.com

Open →

PXI Serial Hardware and Software for Windows NT — Archived Getting Started GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-8422/2 support RS-485 or RS-422?

No. NI identifies this model as RS-232. The isolated two-port RS-485/RS-422 model in the legacy family is the PXI-8423/2.

Is the isolation rating 2000 V continuously?

No. NI specifies 60 VDC continuous isolation, CAT I, for both port-to-port and port-to-host isolation. The 2000 Vrms value is a withstand rating verified by a 5-second dielectric test.

Does NI-Serial 17.0 support this module?

No. NI states that NI-Serial 17.0 removed support for the PXI-8422 family. Review the requirements of an appropriate older driver release and the intended operating system.

Are all standard DB-9 RS-232 control signals connected?

No. NI's reference guide marks DCD, DTR, DSR, and RI as no-connect signals on PXI-8422 ports. Check the pinout against the instrument's handshaking requirements.
