National Instruments · PXI

PXI-6259

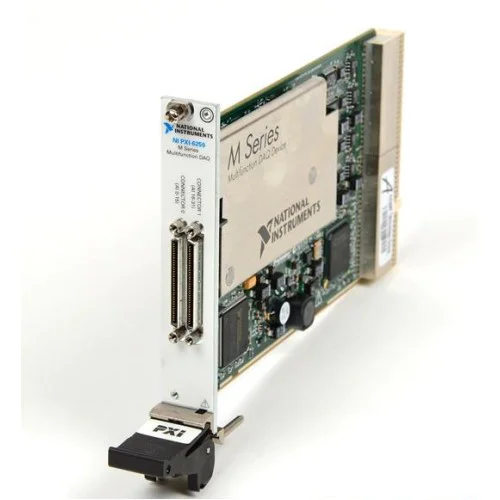

The National Instruments PXI-6259 is an M Series multifunction DAQ module combining 32 single-ended or 16 differential analog inputs, four analog outputs, 48 digital I/O lines, and two counters/timers.

ManufacturerNational Instruments

ModelPXI-6259

Product TypeMultifunction data acquisition module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6259

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog input32 single-ended or 16 differential channels, 16-bit

AI sampling1.25 MS/s single channel; 1.00 MS/s aggregate multichannel

Analog outputFour 16-bit channels

Digital I/O48 individually direction-programmable lines

CountersTwo 32-bit counters/timers

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6259 integrates analog acquisition, voltage output, digital I/O, and counter functions in a standard 3U PXI module. Two 68-pin VHDCI connectors provide signal access.

Sampling and output rates depend on channel usage. The multichannel analog input limit is aggregate, while the analog output update limit decreases as more output channels are enabled.

Seven bipolar analog input ranges from ±0.1 V to ±10 V.
Analog and external digital triggering.
X1, X2, and X4 quadrature encoder measurements with Channel Z reloading.
Six DMA channels for acquisition, generation, and counter data transfers.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	32 single-ended or 16 differential
ADC resolution	16 bit
Maximum single-channel AI sample rate	1.25 MS/s
Maximum multichannel AI sample rate	1.00 aggregate MS/s
Analog input ranges	±0.1, ±0.2, ±0.5, ±1, ±2, ±5, ±10 V
Analog output channels / resolution	4 channels / 16-bit
Maximum AO update rate	1 or 2 channels: 2.86 per channel; 3 channels: 1.54 per channel; 4 channels: 1.25 per channel MS/s
Digital I/O lines	48
Counters/timers	2, each 32-bit; internal timebases 80 MHz, 20 MHz, 0.1 MHz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6259

M Series multifunction DAQ module

Signal connectivity

Dual 68-pin VHDCI connectors; select cables and terminal blocks using NI's 62xx compatibility guide.

Check the module revision and chassis slot requirements before integration; do not substitute PXIe-6259 specifications.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI/PCIe/PXI/PXIe/USB-6259 SpecificationsSpecifications · ni.com

Open →

M Series User ManualUser Manual · docs-be.ni.com

Open →

PXI-6259 Dimensional DrawingsDimensional Drawings · ni.com

Open →

NI 62xx Cable and Accessory Compatibility GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does 1.25 MS/s apply to every analog input simultaneously?

No. The maximum is 1.25 MS/s for one channel and 1.00 MS/s aggregate for multichannel acquisition.

Can the BNC-2110 expose all 48 digital I/O lines?

No. NI states that only 46 of the 48 DIO pins are accessible with BNC-2110 connectivity. When two BNC-2110 blocks are used, Connector 1 routing requires care because the block labels do not match the device pinout.
