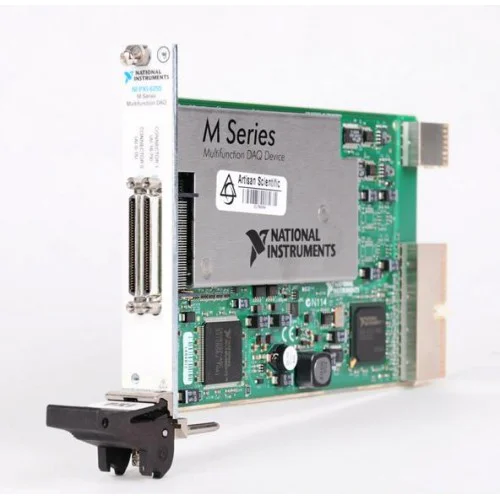

The NI PXI-6255 is an M Series multifunction DAQ module with 80 analog inputs and 16-bit resolution for PXI systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-6255 combines analog acquisition, analog output and digital I/O. NI documents two analog outputs and 24 digital I/O lines for this model.
The M Series User Manual provides a dedicated PCI/PXI-6255 pinout. Connector 0 carries AI 0–15 and other I/O signals; Connector 1 carries AI 16–79. Use the model-specific pinout when planning field wiring.
Verified product specifications.
| Analog input channels | 80 single-ended / 40 differential channels |
|---|---|
| ADC resolution | 16 bits |
| Maximum single-channel sample rate | 1.25 MS/s |
| Maximum aggregate multichannel sample rate | 750 kS/s |
| Analog outputs | 2 channels |
| DAC resolution | 16 bits |
| Maximum AO update rate, one channel | 2.86 MS/s |
| Maximum AO update rate, two channels | 2.00 per channel MS/s |
| Digital I/O | 24 lines |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Hardware platform
M Series DAQ module
NI-DAQmx 8.6 lists the PXI-6255 as supported hardware.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. NI explicitly permits installation in PXI Express hybrid slots.
No. NI excludes this capability for the PXI-6255.
