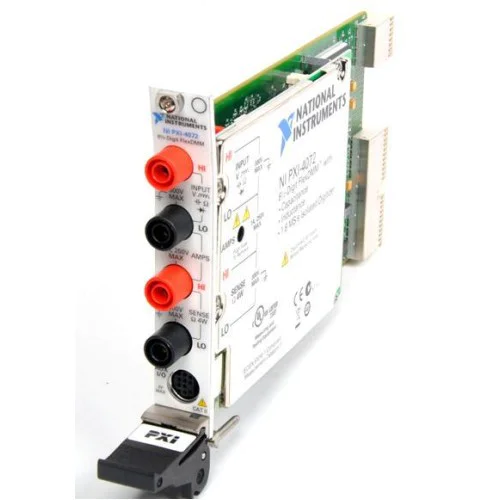

National Instruments PXI-4072 Digital multimeter with isolated digitizer and inductance/capacitance measurement
1 image: Click to enlarge
National Instruments · PXI

PXI-4072

The National Instruments PXI-4072 combines a 6½-digit FlexDMM and a 1.8 MS/s isolated digitizer with inductance and capacitance measurement support in a PXI instrument.

ManufacturerNational Instruments
ModelPXI-4072
Product TypeDigital multimeter with isolated digitizer and inductance/capacitance measurement
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-4072

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Instrument family6½-digit FlexDMM
DigitizerIsolated, up to 1.8 MS/s
Additional measurementsInductance and capacitance
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-4072 brings precision DMM measurements and isolated waveform acquisition into the PXI platform. NI documents it alongside the PXI-4070 as a 6½-digit FlexDMM with an integrated digitizer.

NI-DMM provides software control. For synchronized acquisition, NI describes configuring PXI-407x instruments to start from a common external trigger.

  • Integrated isolated digitizer for waveform acquisition.
  • Two-wire and four-wire resistance measurement.
  • Inductance and capacitance measurements with OPEN/SHORT lead compensation.
  • Common-trigger acquisition configuration through NI-DMM.
Verified specifications

Technical data

Verified product specifications.

Nominal resolution6½ digits
Maximum isolated digitizer sampling rate1.8 MS/s
DC voltage ranges100 mV, 1 V, 10 V, 100 V, 300 V
DC current ranges20 mA, 200 mA, 1 A
Capacitance ranges300 pF to 10,000 μF
Inductance ranges10 μH to 5 H
Nominal DC reading rate at 4½ digits7 kS/s; Auto Zero disabled, measured on 10 V and 10 kΩ ranges
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-4072

FlexDMM and LCR meter

Driver

NI-DMM

The PXI-4072 does not support continuous acquisition in waveform mode.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-4072 SpecificationsSpecifications · download.ni.com
Open →
PCI/PXI-4070/PXI-4072 Calibration ProcedureTechnical Procedure · ni.com
Open →
PCI-4070, PXI-4070/4071/4072 Letter of VolatilityLetter Of Volatility · ni.com
Open →
PXI Digital Multimeter SynchronizationTechnical resource
Open →
Performing Continuous DMM Acquisitions in Waveform ModeTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PXI-4070View product →
Related model
PXI-4071View product →

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can multiple PXI-4072 instruments share an acquisition trigger?

Yes. NI provides a method for starting multiple PXI-407x instruments from the same external trigger using NI-DMM.

Does the PXI-4072 measure inductance and capacitance?

Yes. It supports both measurements using multi-tone constant-current excitation.
