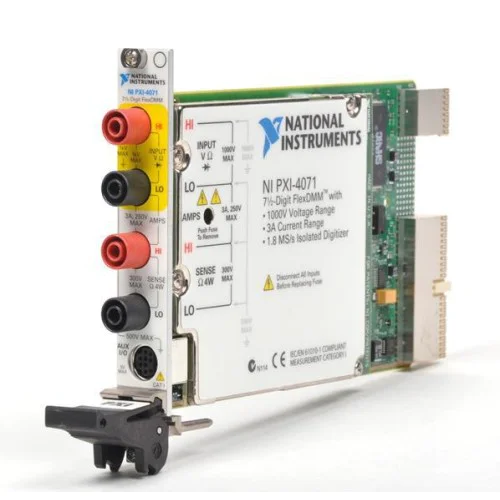

The National Instruments PXI-4071 combines a 7.5-digit digital multimeter and an isolated digitizer in a PXI module.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-4071 belongs to NI's PXI-407x DMM family. NI documents behavioral differences between this family and the PXIe-408x instruments, so migration requires reviewing driver settings and acquisition behavior rather than assuming interchangeability.
Verified product specifications.
| Maximum DMM resolution | 7.5 digits |
|---|---|
| DC voltage ranges | 100 mV, 1 V, 10 V, 100 V, 1000 V |
| DC current ranges | 1 μA, 10 μA, 100 μA, 1 mA, 10 mA, 100 mA, 1 A, 3 A |
| Maximum AC voltage range | 700 V RMS |
| Maximum resistance range | 5 GΩ; two-wire only; accuracy specification is typical |
| Maximum digitizer sampling rate | 1.8 at 10-bit resolution MS/s |
| Physical format | 3U, one-slot PXI/cPCI module |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
Digital multimeter and isolated digitizer
NI-DMM 19.5 explicitly lists PXI-4071 support.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Use NI-DMM. NI-DMM 19.5 lists the PXI-4071 as supported hardware; consult the readme for the specific release when selecting an operating system and development environment.
Do not assume interchangeability. NI documents differences in property behavior, buffering and waveform acquisition between the PXI-407x and PXIe-408x families.
