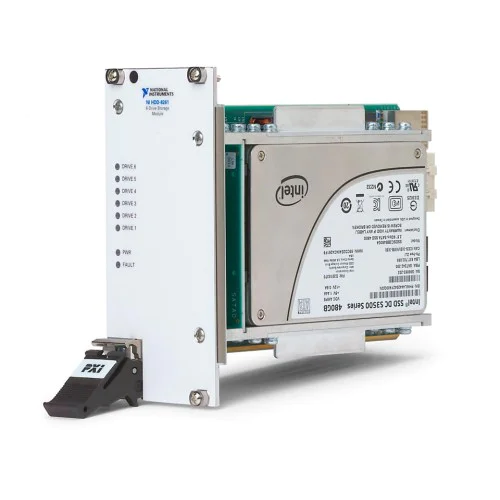

National Instruments HDD-8261 In-chassis data storage module

1 image: Click to enlarge

National Instruments · PXI Express

HDD-8261

The NI HDD-8261 is a three-slot, in-chassis PXI Express storage module for data streaming and additional system storage. NI documents separate HDD and SSD configurations; confirm the installed variant before selecting capacity or throughput requirements.

ManufacturerNational Instruments

ModelHDD-8261

Part Number784191-01 · 784192-01

Product TypeIn-chassis data storage module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: HDD-8261

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI Express

Module width3 slots

HDD configuration784191-01: 4 TB across 4 HDDs

SSD configuration784192-01: 2.9 TB across 6 SSDs

RAID implementationSoftware RAID; no onboard hardware RAID controller

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The HDD-8261 places storage inside the PXI Express chassis rather than in a standalone disk enclosure. Its onboard PCI Express SATA controller supports the module's drives.

Streaming performance depends on the drive variant and system configuration. NI documents HDD write speeds up to 250 MB/s in RAID 0 across approximately 80% of disk capacity, while the SSD variant supports write speeds up to 2 GB/s.

GEN2 x8 PXI Express backplane connection.
Supports software RAID or JBOD operation.
Front-panel power, failure and drive-activity indicators.

Verified specifications

Technical data

Verified product specifications.

Bus connector	PXI Express
Module width	3 slots
Storage capacity — 784191-01 HDD variant	4 TB
Drive count — 784191-01 HDD variant	4 drives
Storage capacity — 784192-01 SSD variant	2.9 TB
Drive count — 784192-01 SSD variant	6 drives
Drive interface	Serial-ATA 3.0
Dimensions	6 × 13 × 21.6 cm
Operating ambient temperature — HDD	5 to 50 °C
Operating ambient temperature — SSD	0 to 50 °C
Operating relative humidity	10 to 90, noncondensing %

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Chassis and backplane platform

HDD-8261

In-chassis storage module

Installation

One PXI Express module slot plus two module expansion slots.

Confirm the installed drive variant, three-slot clearance and driver/OS requirements before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

HDD-8261 Official Product and Support PageProduct Page · ni.com

Open →

HDD-8261 Getting Started Guide and SpecificationsGetting Started Guide And Specifications · download.ni.com

Open →

HDD-8261 Firmware and Additional DriversDriver Download · ni.com

Open →

Data Rate Optimization on the NI 8261Technical resource

Open →

Drivers for NI RAID Array ProductsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the HDD-8261 a standalone hard disk?

No. It is an in-chassis PXI Express data storage module with an onboard SATA controller.

Does the HDD-8261 include hardware RAID?

No. NI specifies software RAID because the module has no hardware RAID controller.

What determines streaming throughput?

The drive variant, RAID configuration, chassis, controller and buffering affect performance. NI's optimization guidance also identifies chassis fan vibration as a performance factor for the HDD version.

Where can I find the appropriate driver?

Use NI's HDD-8261 Firmware and Additional Drivers page and RAID driver guidance. Check the selected driver's documentation for Windows-version compatibility.
