National Instruments HDD-8265 External 12-drive hardware RAID enclosure

1 image: Click to enlarge

National Instruments · PXI streaming systems

HDD-8265

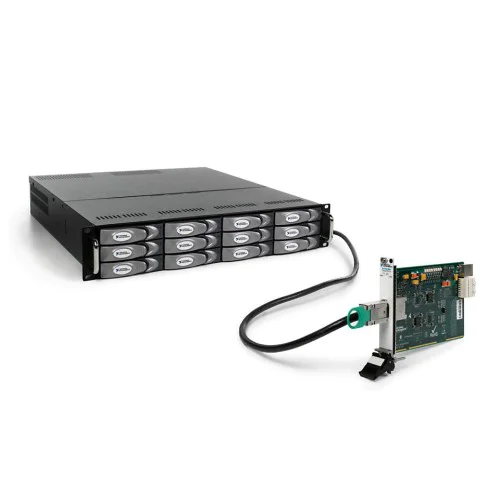

The NI HDD-8265 is an external 12-drive RAID enclosure for sustained disk reading and writing in PXI streaming systems. It connects through cabled PCI Express x4.

ManufacturerNational Instruments

ModelHDD-8265

Part Number781446-01 · 781447-01

Product TypeExternal 12-drive hardware RAID enclosure

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: HDD-8265

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Storage architectureHardware RAID

Drive count12

Rack height2 U

Host connectionCabled PCI Express x4

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The HDD-8265 provides external storage rather than an individual desktop hard drive. Its enclosure integrates a RAID controller and SATA II disks, connecting to a PXI bus extension module.

NI lists 781446-01 as the 12 TB version and 781447-01 as the 6 TB version. The supplied catalog record does not establish which configuration is represented.

Integrated hardware RAID controller.
SATA II hard-drive storage.
External cabled connection for PXI streaming.

Verified specifications

Technical data

Verified product specifications.

Number of drives	12
Device height	2 U
Host interface	Cabled PCI Express x4
Drive interface	SATA II
Sustained throughput listed in NI attributes	700 MB/s

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI streaming system

Data acquisition and streaming platform

MXI-Express x4 connection

Host-to-storage link

HDD-8265

External RAID storage

Confirm the installed capacity, host adapter, cable, RAID configuration, and operating-system driver before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI HDD-8265 Product PageProduct Page · ni.com

Open →

Set Up Your MXI-Express x4 SystemSetup Guide · download.ni.com

Open →

HDD-8265 Product CertificationsCertification Reference · ni.com

Open →

Drivers for NI RAID Array ProductsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the HDD-8265 a single hard drive?

No. NI identifies it as an external 12-drive hardware RAID enclosure.

Which host adapters are documented for connection to the HDD-8265?

NI's MXI-Express x4 setup guide lists PCIe-8371 and PCIe-8372 computer adapters, plus PXIe-8374 and NI 8262 chassis adapters, with HDD-8265 connectivity through an MXI-Express x4 copper cable.

Which driver does NI identify for the HDD-8265?

NI lists the Areca ARC-1882IX-12 driver. Its support article advises checking the driver documentation for compatibility with the intended Windows version.
