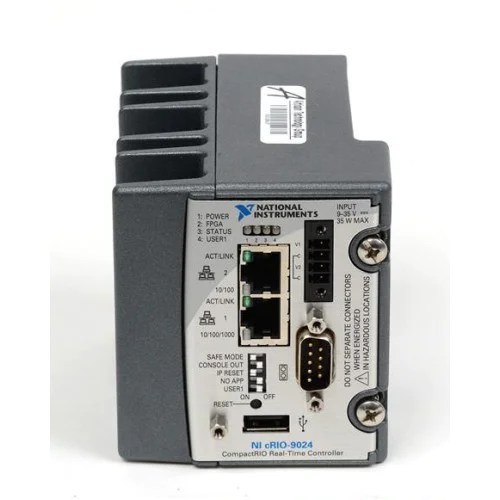

The NI CRIO-9024 is a fanless CompactRIO real-time controller for advanced control and monitoring. C Series I/O requires a compatible separate chassis.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The CRIO-9024 provides the embedded controller portion of a modular CompactRIO system. It has no integrated C Series module slots.
Configure networking and install controller software through NI Measurement & Automation Explorer (MAX), then program using LabVIEW Real-Time.
Verified product specifications.
| CPU frequency | 800 MHz |
|---|---|
| DRAM | 512 MB |
| Nonvolatile memory | 4 GB |
| Ethernet port 1 rates | 10/100/1000 Mbps |
| Ethernet port 2 rates | 10/100 Mbps |
| Power-up voltage | 9 to 35 VDC |
| Operating voltage after power-up | 6 to 35 VDC |
| Controller-only power consumption | 17 W |
| Operating temperature | -20 to 55; mounting-dependent derating applies °C |
| Weight | 609 g |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular embedded platform
Real-time controller
Separate compatible CompactRIO chassis required for C Series modules.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It is a CompactRIO embedded real-time controller, not a C Series I/O module.
No. Module slots belong to the separate compatible CompactRIO chassis.
No. Use Ethernet port 1. Port 2 requires a static address on a different subnet.
