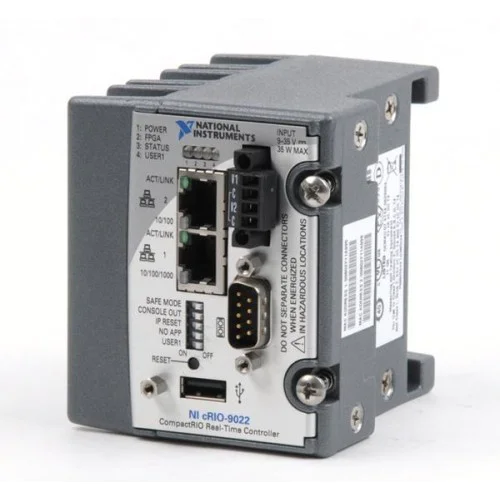

National Instruments cRIO-9022 Embedded real-time controller
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9022

The NI cRIO-9022 is a fanless CompactRIO embedded real-time controller with a 533 MHz CPU, 256 MB DRAM and 2 GB storage. C Series I/O requires a separate compatible CompactRIO chassis.

ManufacturerNational Instruments
ModelcRIO-9022
Product TypeEmbedded real-time controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9022

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
CPU533 MHz
Memory256 MB DRAM
Storage2 GB nonvolatile
ConnectivityTwo Ethernet ports, one USB port and one serial port
I/O architectureSeparate chassis; no integrated C Series slots
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9022 provides embedded real-time processing for CompactRIO control and monitoring systems. It is the controller component, rather than an I/O module or an integrated eight-slot system.

NI identifies this model as a legacy CompactRIO controller. Check the intended software release carefully: NI CompactRIO 20.0 and Drivers explicitly ends support for the cRIO-9022.

  • Fanless embedded controller for control and monitoring.
  • Separate controller and chassis architecture for C Series I/O.
  • Primary and secondary DC power inputs.
  • LabVIEW Real-Time programming and MAX configuration.
Verified specifications

Technical data

Verified product specifications.

CPU frequency533 MHz
DRAM256 MB
Nonvolatile memory2 GB
Ethernet port 1 rates10 / 100 / 1000 Mbps
Ethernet port 2 rates10 / 100 Mbps
Serial interfaceRS-232 DTE; 300 to 230400 bps
USB maximum data rate480 Mb/s
Input voltage at startup9 to 35 VDC
Input voltage after startup6 to 35 VDC
Controller-only power consumption17 W
Operating temperature-20 to 55; mounting requirements apply °C
Weight609 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control and I/O platform

cRIO-9022

Real-time controller

I/O expansion

C Series modules use a separate compatible CompactRIO chassis.

Confirm the chassis and software release before planning integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9022 Product PageProduct Page · ni.com
Open →
NI cRIO-9022 User Manual and SpecificationsUser Manual And Specifications · download.ni.com
Open →
cRIO-9022 Dimensional DrawingsDimensional Drawings And CAD Resources · ni.com
Open →
NI CompactRIO 20.0 and Drivers Readme — Hardware Support ChangesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CRIO-9024View product →
Related model
CRIO-9025View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the cRIO-9022 include eight I/O slots?

No. It has no integrated C Series slots; I/O requires a separate compatible CompactRIO chassis.

Are both Ethernet ports Gigabit?

No. Port 1 supports 10/100/1000 Mbps; port 2 supports 10/100 Mbps.

Which Ethernet port is used for configuration?

Use port 1. Port 2 requires a static address on a different subnet and does not support DHCP.

Does NI CompactRIO 20.0 support this controller?

No. The NI CompactRIO 20.0 and Drivers readme explicitly lists the cRIO-9022 among devices whose support ends with that release.
