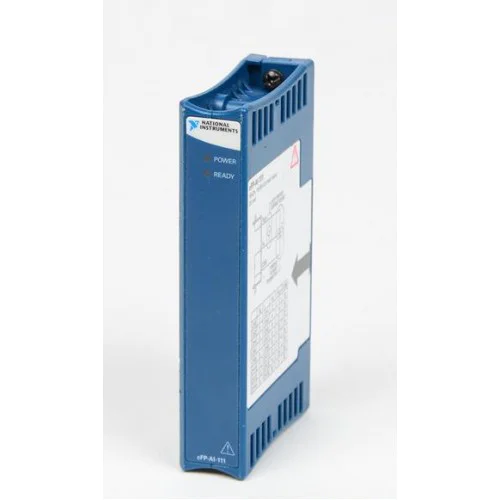

The CFP-AI-111 is a National Instruments Compact FieldPoint module with 16 analog current inputs.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
NI identifies the cFP-AI-111 as a current-input member of the Compact FieldPoint platform, distinct from its voltage-input modules.
Verified product specifications.
| Input channels | 16 channels |
|---|---|
| ADC resolution | 16 at 50/60 Hz; 12 at 500 Hz bits |
| Nominal current ranges | ±20; 0–20; 4–20 mA |
| Update time | 1.23 / 1.05 / 0.29 at 50 / 60 / 500 Hz; all channels use identical range and filter s |
| Input impedance | 100 Ω |
| Operating temperature | −40 to 70 °C |
| Channel-to-channel isolation | None |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Backplane platform
Current acquisition
Mounts on cFP-BP-x backplanes; cFP-CB-x blocks provide field connections.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Its specified inputs measure current.
No. The 500 Hz filter reduces resolution to 12 bits.
