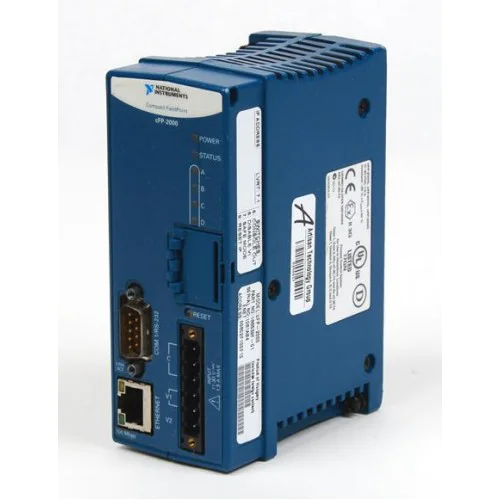

National Instruments CFP-2000 Real-time controller
1 image: Click to enlarge
National Instruments · Compact FieldPoint

CFP-2000

The National Instruments CFP-2000, styled cFP-2000 in NI documentation, is a Compact FieldPoint real-time controller. It connects a modular FieldPoint system to Ethernet and runs embedded LabVIEW RT applications.

ManufacturerNational Instruments
ModelCFP-2000
Product TypeReal-time controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-2000

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
RoleCompact FieldPoint real-time controller
Network10/100 Mbps Ethernet
Serial interfaceOne RS-232 port
Supply11–30 VDC
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The CFP-2000 provides controller functionality rather than fixed analog or digital measurement channels. A complete system uses a separate Compact FieldPoint backplane, I/O modules and field-wiring accessories.

With the LabVIEW RT engine, the controller can execute applications without a host PC. An Ethernet-connected host can display measurement results and status information and change controller settings.

  • Embedded application execution using LabVIEW RT.
  • Automatically negotiated 10 or 100 Mbps Ethernet communication.
  • RS-232 serial communication through the COM 1 port.
  • Primary and optional backup DC supply connections.
Verified specifications

Technical data

Verified product specifications.

Ethernet standards10BaseT and 100BaseTX; IEEE 802.3
Ethernet communication rates10 or 100, auto-negotiated Mbps
Power supply range11–30 VDC
DRAM16 MB
Nonvolatile memory16 MB
RS-232 ports1 port
Operating temperature-25 to 60 °C
Controller weight278 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Modular controller, backplane and I/O platform

CFP-2000

cFP-20xx real-time controller

Backplane

Uses a separate cFP-BP-4 or cFP-BP-8 backplane.

Confirm the backplane, I/O modules, wiring accessories and software versions for the intended system before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

cFP-20xx and cFP-BP-x User Manual — April 2004User Manual · docs-be.ni.com
Open →
cFP-20xx Quick Start GuideQuick Start Guide · docs-be.ni.com
Open →
NI CFP-2000 model support pageTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CFP-2010View product →
Related model
CFP-2020View product →
Related model
CFP-BP-4View product →
Related model
CFP-BP-8View product →

Explore equipment

Compact FieldPoint

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the CFP-2000 an I/O module?

No. It is the real-time controller for a Compact FieldPoint system. Separate I/O modules provide measurement and output channels.

Does the CFP-2000 support Gigabit Ethernet?

No. NI specifies 10BaseT and 100BaseTX Ethernet with automatically negotiated 10 or 100 Mbps communication.

Does the controller itself provide eight I/O slots?

No. The I/O slots belong to the separate backplane. The Compact FieldPoint system can use a cFP-BP-4 or cFP-BP-8 backplane.
