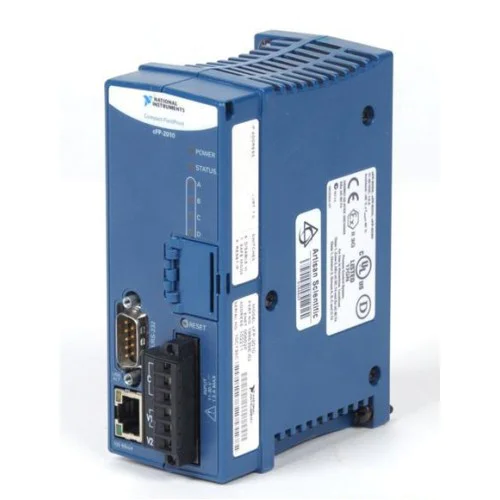

National Instruments CFP-2010 Embedded real-time controller

1 image: Click to enlarge

National Instruments · Compact FieldPoint

CFP-2010

The NI CFP-2010 is a Compact FieldPoint controller, not an analog or digital I/O module.

ManufacturerNational Instruments

ModelCFP-2010

Part Number777317-2010

Product TypeEmbedded real-time controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-2010

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformCompact FieldPoint

Ethernet10/100 Mbps

Supply11–30 VDC

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The controller installs on a cFP-BP-x backplane alongside separate I/O modules and connection accessories.

LabVIEW RT controller.
Auto-negotiated Ethernet communication.
Primary and backup power inputs.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	777317-2010
Network interface	10BaseT/100BaseTX
Supply voltage	11–30 VDC
Operating temperature	-25 to 60 °C
Maximum I/O power supplied	9 W
Weight	278 g

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Modular platform

CFP-2010

Controller

Compatibility

Uses cFP-BP-4 or cFP-BP-8 backplanes.

Confirm the backplane, I/O modules and legacy software versions before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

cFP-20xx Quick Start GuideSetup Guide And Specifications · docs-be.ni.com

Open →

NI FieldPoint End-of-Life Product ReferenceManufacturer Identification Reference · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Compact FieldPoint

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the CFP-2010 an I/O module?

No. NI identifies part 777317-2010 as a controller.

Does it support Gigabit Ethernet?

The documented interface is 10/100 Mbps Ethernet.

Does the controller itself provide eight I/O slots?

Slot capacity depends on the separate backplane.
