National Instruments · VXI

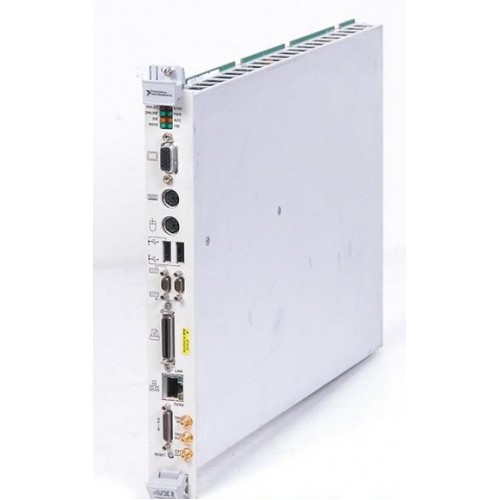

VXIPC-770 SERIES

Name: VXIPC-770 SERIES
Brand: National Instruments

The National Instruments VXIpc-770 Series is an embedded controller family for VXI instrumentation systems. NI provides series-level guidance for chassis installation, memory expansion, and NI-VXI software integration.

ManufacturerNational Instruments

ModelVXIPC-770 SERIES

Product TypeEmbedded VXI controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: VXIPC-770 SERIES

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformEmbedded VXI controller

Maximum supported RAM512 MB

Memory format144-pin, 133 MHz SDRAM SO-DIMM

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The VXIpc-770 Series places an embedded computer within a VXI chassis. NI documents the family alongside the VXIpc-870B Series for installation and servicing, and identifies the VXIpc-770 Series in its NI-VXI/NI-VISA software documentation.

Installation requires attention to the controller's System Controller configuration and the selected chassis slot. For memory servicing, NI specifies two SO-DIMM sockets and a total supported capacity of 512 MB; these limits do not establish the memory installed in an individual controller.

Embedded controller architecture for VXI instrumentation systems.
Two memory sockets support RAM expansion up to 512 MB total.
Documented NI-VXI/NI-VISA integration for legacy Linux systems using Intel x86 kernels 2.4.x or 2.6.x.

Verified specifications

Technical data

Verified product specifications.

Platform	VXI
Maximum supported memory	512 MB
Memory type	144-pin, 133 MHz SDRAM SO-DIMM
Memory sockets	2

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

VXI

Instrumentation chassis platform

VXIpc-770 Series

Embedded controller family

Software layer

NI-VXI/NI-VISA documentation explicitly includes the VXIpc-770 Series.

Match the chassis slot to the controller's System Controller configuration before installation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

VXIpc 770/870B Series Installation and TroubleshootingInstallation And Troubleshooting Guide · docs-be.ni.com

Open →

NI-VXI/NI-VISA for the VXIpc Embedded Controller for Linux Installation GuideSoftware Installation Guide · download.ni.com

Open →

Restore the Operating System of Legacy NI ControllersTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the maximum supported memory?

NI's VXIpc 770/870B Series installation guide specifies a maximum of 512 MB across two SO-DIMM sockets. This is a supported capacity, not a statement of installed memory.

What should be checked before installing the controller?

Check the VXI chassis instructions and controller configuration. Unless automatic System Controller detection is configured, the selected slot must match the System Controller or Non-System Controller jumper setting.

Is there official Linux software documentation for this series?

Yes. NI's legacy NI-VXI/NI-VISA Linux installation guide lists the VXIpc-770 Series and specifies Intel x86 Linux kernels 2.4.x or 2.6.x. It does not establish support for modern Linux distributions.
