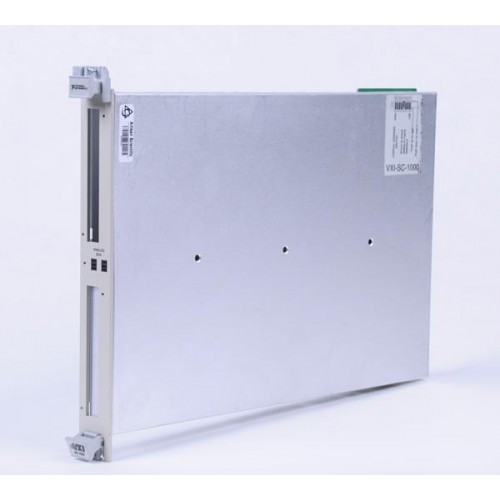

The NI VXI-SC-1000 houses one or two VXI-SC signal-conditioning submodules in a single C-size VXI slot.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The carrier connects VXI-SC submodules to the VXI system. Signal-conditioning capabilities depend on the installed submodules.
NI lists this carrier among devices unsupported by NI-DAQ 7.x; programming requires NI-DAQ 6.9.x or earlier.
Verified product specifications.
| Submodule capacity | 2 submodules |
|---|---|
| Carrier supply | +5 VDC |
| Carrier current, excluding submodules | 0.15 typical; 0.25 maximum A |
| Operating temperature | 0 to 55 °C |
| Storage temperature | -20 to 70 °C |
| Operating and storage humidity | 5 to 90, noncondensing % RH |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Chassis platform
Submodule carrier
Works with VXI-MIO control modules.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. Retain the filler panel when only one submodule is installed.
NI's NI-DAQ 7.4 readme lists it as unsupported by both NI-DAQmx and Traditional NI-DAQ 7.x. NI specifies NI-DAQ 6.9.x or earlier for programming.
