VXI-8340

National Instruments VXI-8340 / VXI-8345 MXI-3 / MXI3 Interface Modules and Cables
Features

• Word Serial (message-based) Communication
• Register-Based Communication
• Direct Trigger and Interrupt Control

The National Instruments MXI-3 system is a PCI-PCI bridge that needs no software for normal operation. When the desktop PC or the CompactPCI/PXI controller powers on, the system BIOS scans its local PCI bus for devices. When it finds the primary interface of the MXI-3 card, it opens memory windows in the card and searches for PCI devices through those windows using PCI transactions. The PC recognizes all devices on the secondary bus to be on a single PCI bus.

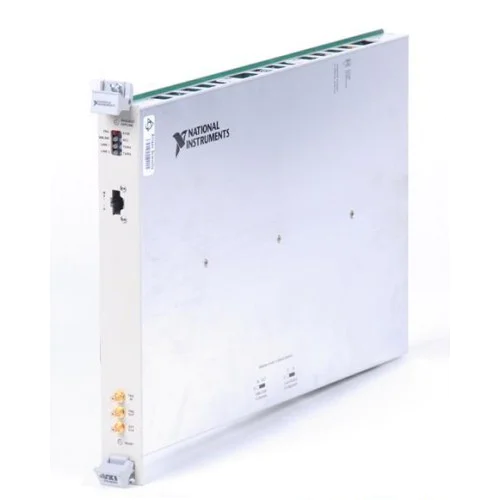

The National Instruments VXI-MXI-3 is a single-slot C-size VXI module with front panel indicator LEDs. This product also has SC/PC optical I/O connectors for MXI, Trig I/O connectors, and an EXT CLK connector.

Part Numbers: 187422C-01, 778294-01<
