VXI-1000

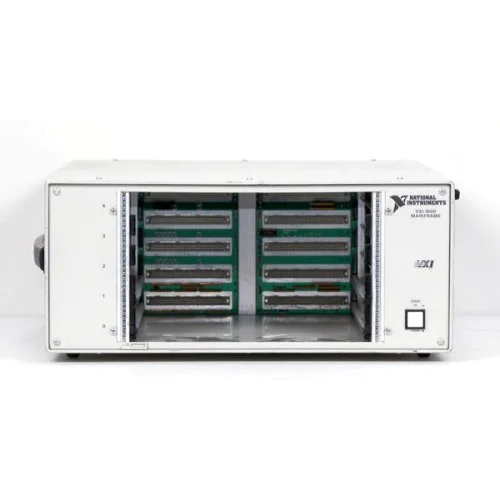

National Instruments VXI-1000 Mainframe
Features

• 5-Slot C-size Fully Integrated Mainframe
• Two-Speed Directed Airflow Cooling System
• Jumperless Bus Grant and IACK Daisy-Chain Connectors

The National Instruments VXI-1000 is a completely integrated C-size, 5-slot VXIbus mainframe. It is fully compatible with the VXIbus System Specification and is compliant with UL, FCC, and VEDA standards. This mainframe incorporates the highest industry standards in backplane EMI/signal performance, pressurized cooling capability, high-efficiency power distribution, module development access, and support maintenance. The VXI-1000 has 2 96-pin VXIbus connectors (P1 and P2) per module slot for full access to the VXIbus resources associated with C-size modules.

The VXI-1000 also has the following features:
– 2-speed pressurized-directed airflow, 40 to 50 W per slot cooling system
– Compact 400 W switching power supple with auto-ranging
– Removable top and bottom covers for VXI module development access
– High-quality, 50 ohm/time-matched signal lines, multi-layer backplane
– Rugged, EMI-protected structural design
– Optional 3.5 in. floppy drive or hard drive
