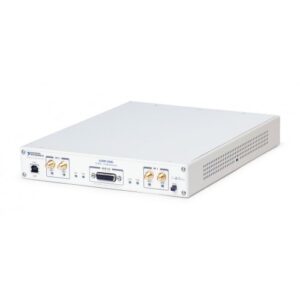

USRP-2954
1 image: Click to enlarge
NI (National Instruments) · Ethernet, MXI Express

USRP-2954

The NI USRP-2954 is a reconfigurable software-defined radio with a 10 MHz to 6 GHz RF frequency range, 160 MHz instantaneous input bandwidth, and GPS-disciplined timing. It provides two input channels and two output channels.

ManufacturerNI (National Instruments)
ModelUSRP-2954
Part Number783153-01
Product Type10 MHz to 6 GHz, GPS-Disciplined OCXO, Reconfigurable USRP Software Defined Radio Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USRP-2954

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionEthernet, MXI Express
RF Frequency Range10 MHz to 6 GHz
GPSDOYes
Number of Output Channels2
RF Transceiver Instantaneous Input Bandwidth160 MHz
Number of Input Channels2
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USRP-2954 provides a reconfigurable radio platform for prototyping wireless communication systems. Its two input channels and two output channels cover an RF frequency range of 10 MHz to 6 GHz, with 160 MHz instantaneous input bandwidth.

The device combines a Kintex-7 410T FPGA with a GPS-disciplined 10 MHz oven-controlled crystal oscillator reference clock. Ethernet and MXI Express bus connections and peer-to-peer streaming support are listed for this model. The listed NI part number is 783153-01.

  • RF tuning range from 10 MHz to 6 GHz.
  • 160 MHz instantaneous input bandwidth.
  • Two RF input channels and two RF output channels.
  • Reconfigurable Kintex-7 410T FPGA.
  • GPS-disciplined 10 MHz OCXO reference clock.
  • Ethernet and MXI Express connectivity with peer-to-peer streaming support.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionEthernet, MXI Express
RF Frequency Range10 MHz to 6 GHz
GPSDOYes
Number of Output Channels2
RF Transceiver Instantaneous Input Bandwidth160 MHz
Number of Input Channels2
FPGAKintex-7 410T
ReconfigurableYes
Maximum Output Power20 dBm
Supports Peer To Peer StreamingYes
NI part numbers783153-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Ethernet, MXI Express

Bus Connection

USRP-2954

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Wireless Design and Test

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What RF frequency range does the USRP-2954 cover?

The USRP-2954 covers 10 MHz to 6 GHz and has 160 MHz instantaneous input bandwidth.

How many input and output channels does it have?

It has two input channels and two output channels.

Does the USRP-2954 include GPS-disciplined timing?

Yes. It includes a GPS-disciplined 10 MHz oven-controlled crystal oscillator reference clock.

Which FPGA and bus connections does the USRP-2954 use?

The device uses a reconfigurable Kintex-7 410T FPGA. Its listed bus connections are Ethernet and MXI Express.
